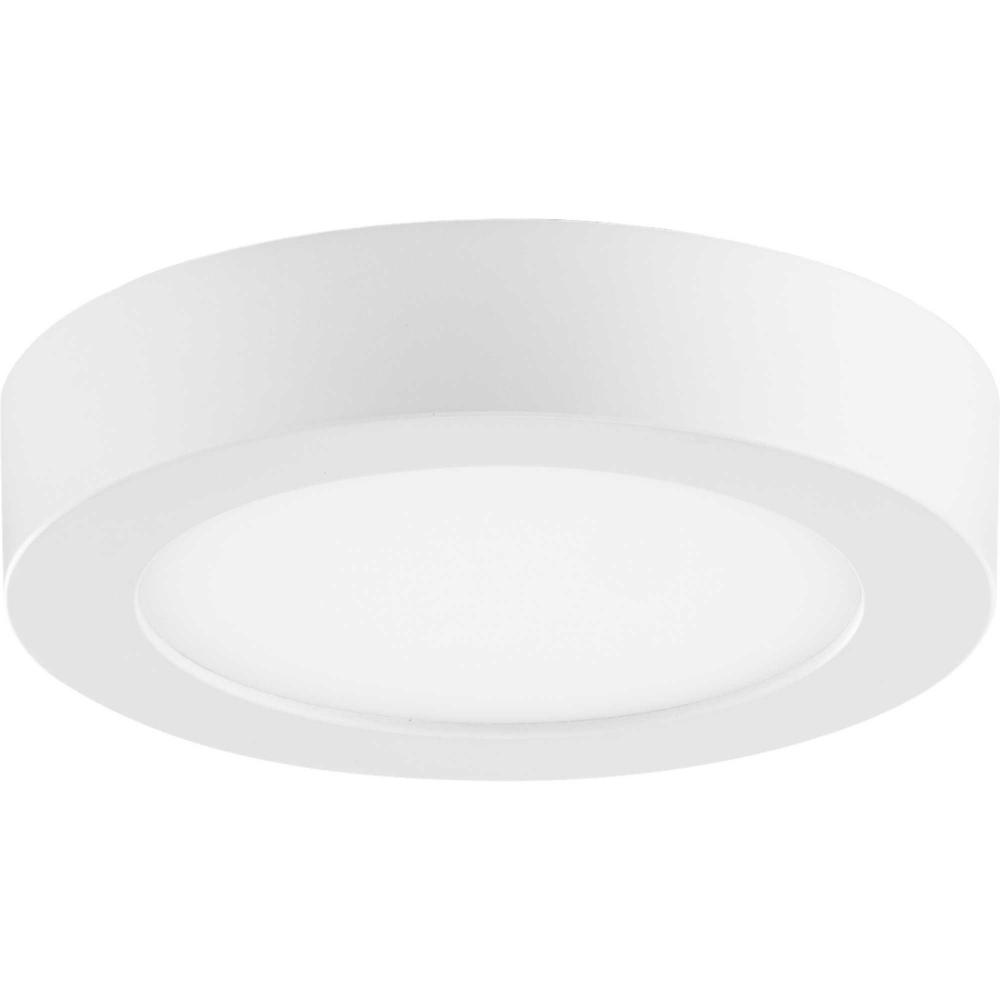

Edgelit technology creates a large glare-free and evenly illuminated surface for a variety of applications for both residential and commercial settings. Offering a low-profile design, LED Flush Mount is available in five sizes: 5", 7", 11", 14" and 18", in a White finish. The integrated driver does not recess into junction box, allowing for easy installation into 4" octagonal, 4" round PVC and 4-1/2" ceiling pan junction boxes. Wet location listed and offers a 50,000-hour LED life.
Additional Details:
Category:
Close-to-Ceiling
Finish:
White
Option:
Energy Efficient
, Energy Star
, Title 20
, Title 24
, Wet Rated
Family:
Everlume
Glass:
Diffused
Voltage:
120
Number of Bulbs:
1 Bulbs
Bulb Hours:
50000
Bulb Type:
Integrated LED
Introduction Date:
01/01/2020
Kelvin:
3000
Length:
5.00
Lumens / Light Output:
800
Material:
Polycarbonate
Ship Carton Height:
5.25
Ship Carton Length:
5.25
Ship Carton Width:
1.75
Ship Weight:
0.70
Special Features:
5” diameter Everlume Edgelit surface mount with LED technology 3000K, 90 CRI, 800 lumens (delivered);Simple installation to steel mounting plate;Light weight non-conductive polycarbonate luminaire construction;Polycarbonate diffuser and acrylic light gui
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5 year
Weight:
0.77
Wire Included:
6 in
Americans with Disabilities Act:
No
Bulb Base:
Integrated
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Certified Listed Location:
Wet Location Listed
Construction Material Main Part:
Construction
Country of Origin:
CN
Dark Sky:
No
Design Series:
No
Dimming Compatability:
Eaton_AAL06;IDevices_IDEV0009;Leviton_IPI06-1LZ;Leviton_SureSlide 6672;Leviton_SureSlide 6674;Lutron_Nova T VTELV-300;Lutron_Diva DVELV-300P;Lutron_Diva DVCL-253P;Lutron_Ariadni AYCL-153P;Lutron_SCL-153P;Lutron_Toggler TGCL-153PH-WH;Lutron_Maestro MACL-153
Dimming Protocol:
Triac/Forward Phase;ELV/Reverse Phase
Energy Efficient:
Yes
Energy Star:
Yes
Finish Type:
Painted
Frequency Rating:
60 Hz
Glass Shape:
Lens
Grounded Convenience Outlet included:
No
JA8:
2019
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
12
Lens Shade Material:
Polycarbonate
Lumens per Watt:
69.00
Mount location:
Wall Or Ceiling
MTO:
No
Operating Temperature Celcius Max:
30 °C
Prop 65:
Yes
Safety Rating:
cCSAus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
Standard Category:
Exterior
, Flush Mounts
Standard Subcategory:
Exterior Flush mounts
, Outdoor Flush Mounts
Standard Finish:
White
Standard Style:
Transitional
Standard Option:
Energy Efficient
, Energy Star
, Title 24
, Wet Rated
, LED
, Title 20
Standard Voltage:
100-120
Standard Lumens:
450-800
Standard Mount Type:
Flush Mount
Standard Kelvin:
2501-3000
Standard Location Rating:
Wet Rated
Standard Wattage:
12w
Family:
Everlume
