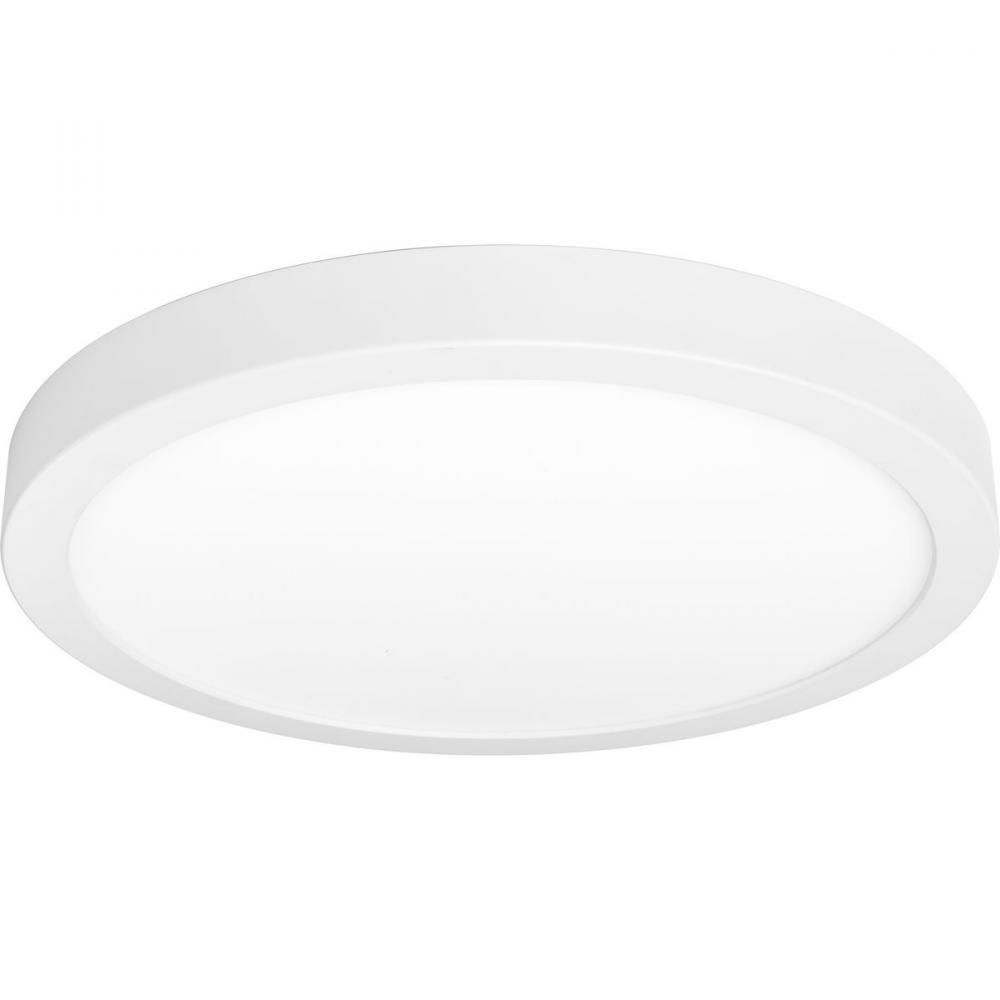

The P810017 Edgelit Flush Mount delivers a solution for both residential and commercial markets. The Edgelit technology provides a bright and evenly illuminated surface in a very slim profile. The integrated LED power supply does not protrude into the junction box, allowing for compatibility to 4" octagonal, 4" round shallow and 4" round PVC junction boxes. This surface mounted luminaire measures 14" in diameter with an overall height of 1". In addition, the P810017 is wet location rated, Title 24 – JA8 – 2016 listed, ENERGY STAR listed and is a cost effective solution for fire rated applications (when installed onto a fire rated junction box). The P810017 luminaire combines modern aesthetic, new technology, performance, cost and safety benefits.
Additional Details:
Category:
Close-to-Ceiling
Finish:
White
Style:
Modern;Transitional
Option:
Energy Efficient
, Energy Star
, Title 20
, Title 24
, Wet Rated
Family:
Everlume
Glass:
White
Voltage:
120
Number of Bulbs:
1 Bulbs
Bulb Hours:
50000
Bulb Type:
Integrated LED
Introduction Date:
01/01/2019
Kelvin:
3000
Length:
14.00
Lumens / Light Output:
1725
Material:
Aluminum/Plastic
Ship Carton Height:
14.50
Ship Carton Length:
14.62
Ship Carton Width:
1.50
Ship Weight:
4.37
Special Features:
Simple installation to steel mounting plate;Light weight polycarbonate luminaire construction;PMMA diffuser controls glare and provides an evenly illuminated surface;1725 lumens (delivered), 90CRI, 3000K;Integrated DC LED power supply capable of flicker-fr
Vendor Ship Method:
Non UPS Shippable False
Warranty:
5-year Limited
Weight:
1.10
Wire Included:
6 in
Americans with Disabilities Act:
No
Bulb Base:
Integrated
Bulb CRI:
90 CRI
Bulb Included:
Yes
Can be Mounted Up or Down:
No
Certified Listed Location:
Wet Location Listed
Construction Material Main Part:
Construction
Convertible Fixture Includes Both Mounts:
FALSE
Country of Origin:
CN
Dark Sky:
No
Design Series:
No
Dimming Compatability:
Lutron_Nova T NTELV-300;Lutron_Diva DVELV-300P;Lutron_Diva DVCL-253P;Lutron_Caseta;IDevices_IDEV0009;Leviton_Trimatron 6681;Leviton_SureSlide 6672;Lutron_Ariadni AYCL-153P;Lutron_Toggler TGCL-153PH;Lutron_NTLV-600;Lutron_Maestro MAELV-600;Leviton_AWRMG-EAW
Dimming Protocol:
Triac/Forward Phase;ELV/Reverse Phase
Energy Efficient:
Yes
Energy Star:
Yes
Finish Type:
Painted
Frequency Rating:
60 Hz
Glass Shape:
Round
Grounded Convenience Outlet included:
No
JA8:
2016
Lamp Type Actual:
LED
Lamp Type Basic:
Solid State
Lamp Wattage:
19.5
Lens Shade Material:
Polycarbonate
Lumens per Watt:
88.00
Mount Location:
Flush-Mount
MTO:
No
Operating Temperature Celcius Max:
30°C
Prop 65:
Yes
Prop 65 Description:
Reproductive Harm, Cancer
Room Type:
Closets;Pantry;Bedroom;Hall & Foyer;Kitchen
Safety Rating:
cCSAus
Starting Temperature Minimum:
-30 °C
Sub Brand:
Progress LED
Title 20:
Yes
Title 24:
Yes
Weight of Fixture Exceeds NEC Limits:
No
Width Diameter:
14 in dia.
Standard Category:
Exterior
, Flush Mounts
Standard Subcategory:
Exterior Flush mounts
, Outdoor Flush Mounts
Standard Finish:
White
Standard Style:
Transitional
Standard Option:
Energy Efficient
, Energy Star
, Title 24
, Wet Rated
, LED
, Title 20
Standard Voltage:
100-120
Standard Lumens:
450-800
Standard Mount Type:
Flush Mount
Standard Kelvin:
2501-3000
Standard Location Rating:
Wet Rated
Family:
Everlume
