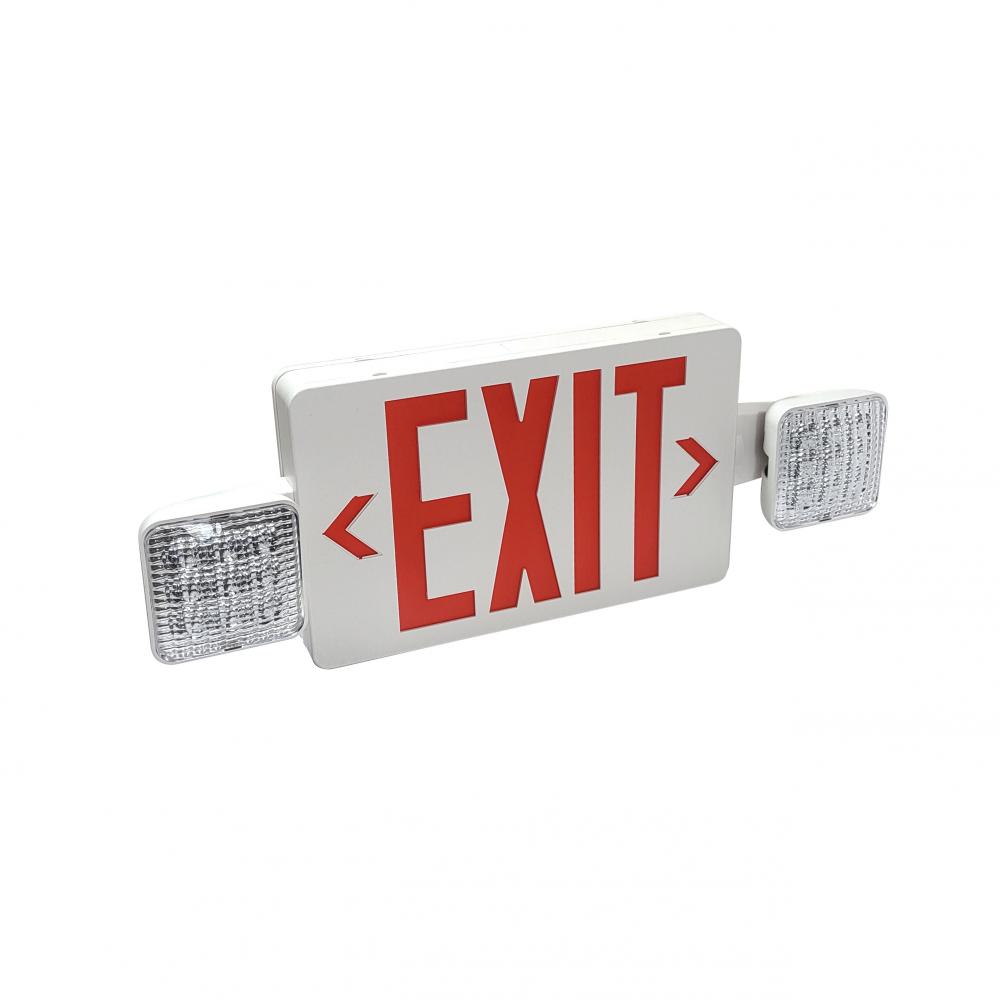

LED exit sign: battery backup, 6” red letters / white housing, color diffusion, and dual fully rotatable lamp heads for maximized adjustability. Exit sign is powered by LED source for maximum life without maintenance; emergency fixtures utilize high performance. In the event of power loss, both sign and heads will operate for a minimum of 90 minutes.
Input Voltage: 120/277VAV
Wattage: 3.8W
Lumens / Wattage Per Head: (2) 75lm / 1.5W
CCT: 5700K
Finish: White
Battery: 3.6V 900mAh Ni-Cad battery operates integral heads and exit LED sources. 90 minute emergency operation Internal solid state charging circuit. High temperature rated Ni-cad battery; Low voltage protection; Test switch and battery charging indicator; 24-hours recharge, more than 90 minutes discharge
Face: Single or dual configuration. Optional solid face panel is included. 6” high text with color diffusion. Knockout directional chevrons.
Remote Capability: 3.6V / 0.75W / 75lm per head
Testing: High-charge/ready operation indicator light; Manual test switch and indicator; Self-testing and self-diagnostics; Isolated surge/short circuit protection
Mounting: Wall or side mount. All mounting hardware included.
Listing: cULus Listed for Damp Locations, UL 924, OSHA, NFPA 101
Additional Details:
Category:
Exit / Emergency
Product Line:
5010
Est. Shipping Wt.:
4
Length:
19
Lumens / Light Output:
150lm
Ship Carton Height:
3.5
Ship Carton Length:
16
Ship Carton Width:
7.75
Weight:
3.25
Battery Quantity:
1
Battery Type:
Nickel-Cadmium
CCT:
5700K
Contains Battery:
Y
Country of Origin:
CHN
DLC Listed:
No
Master Box H:
12
Master Box L:
17
Master Box Qty:
6
Master Box W:
16
Master Box Wt.:
22
Product Family:
EXIT
Wattage:
3.8W
Standard Category:
Utility
Standard Subcategory:
Exit Signs
Product Line:
5010
