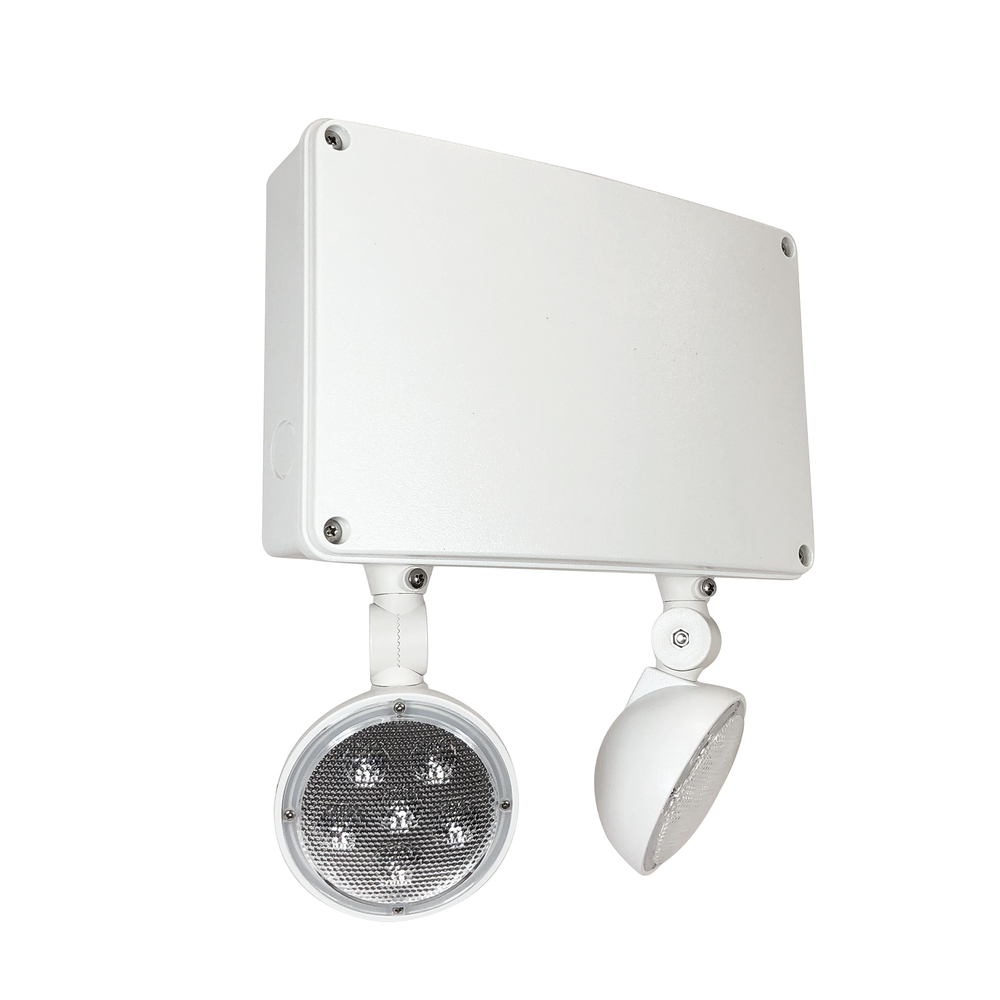

Wet location rated LED emergency luminaire with two adjustable heads. Luminaire is powered by LED sources for maximum life without maintenance. In the event of power loss, LED heads will operate for a minimum of 90 minutes. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur. Self diagnostic testing. Battery Backup.
Input Voltage: 120-277VAC
Power Consumption: 3W
Lumens / Wattage Per Head: (2) 310lm / 2.5W
Finish: White
Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating.
Battery: 7.2V Replaceable 2000mA NiCad battery
Testing: Luminaire includes manual test button for manual verification the transfer circuit and emergency heads operate correctly. Luminaire also performs self tests and diagnostics on battery, charging board, transfer circuit and LED emergency heads. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
Emergency: During loss of power, NiCad battery will operate two adjustable LED emergency heads for 90 minutes. Battery requires 24 hours to recharge when power is restored.
Listing: cULus Listed for Wet Locations, UL 924, NFPA 70, NFPA 101
Additional Details:
Category:
Exit / Emergency
Product Line:
5020
Est. Shipping Wt.:
5
Length:
2.75
Lumens / Light Output:
620lm
Ship Carton Height:
2.875
Ship Carton Length:
12.25
Ship Carton Width:
1.25
Weight:
2.5
Contains Battery:
N
Country of Origin:
CHN
DLC Listed:
No
Master Box H:
12
Master Box L:
18
Master Box Qty:
6
Master Box W:
14
Master Box Wt.:
20
Product Family:
EMERGENCY
Safety Listing:
UL 924, NFPA 70, NFPA 101
Wattage:
3W
Standard Category:
Utility
, Recessed Ltg.
Standard Subcategory:
Other Recessed Ltg.
Standard Finish:
White
Product Line:
5020
