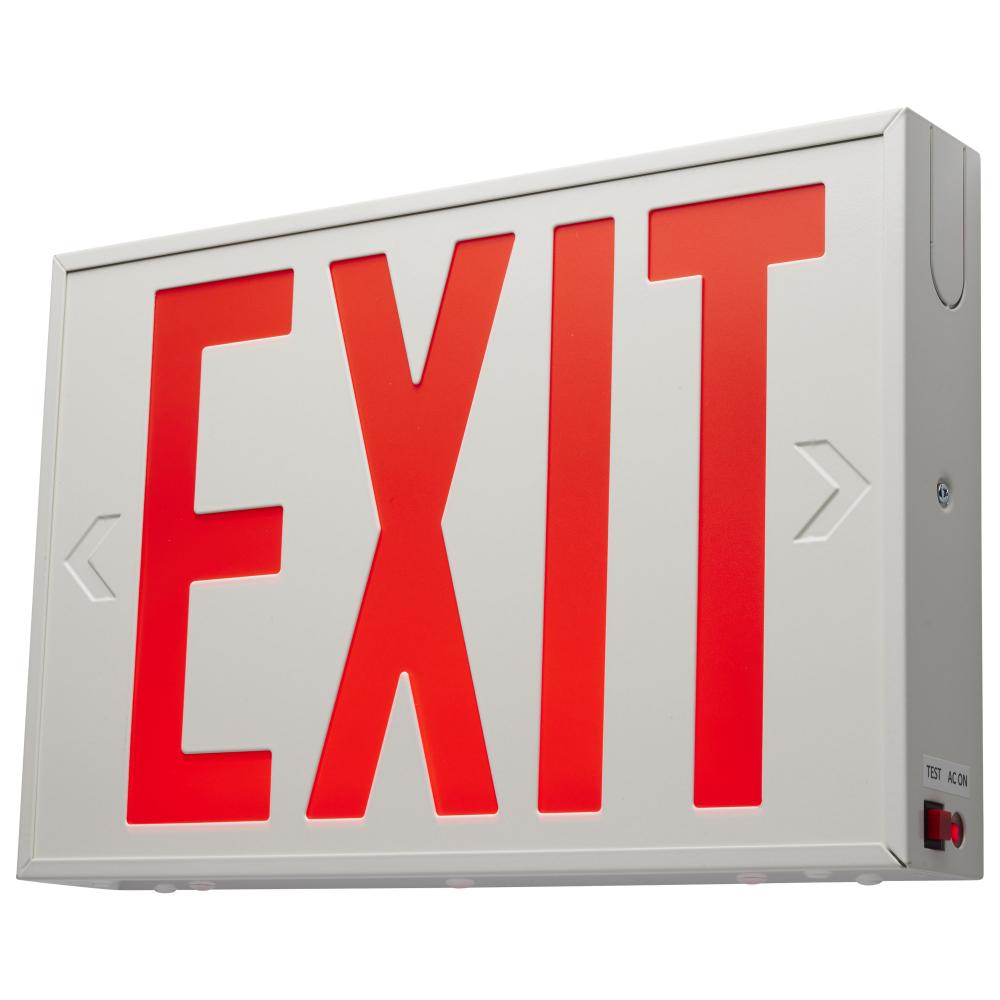

Red LED Exit Sign, 90min Ni-Cad backup, 120V/277V, Single/Dual Face, Universal Mounting, Steel/NYC
Additional Details:
Category:
Lighting Products
Sub Category:
Exit Sign
Style:
Utility
Additional Info:
Input Wattage: 2.0W; Output Wattage: 0.4W; Energy Used in Maintenance Mode: 2.0W
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Non-Dimmable
Harmonized Codes:
9405.61.6000
Ship Carton Height:
2.56
Ship Carton Length:
15.79
Ship Carton Width:
10.04
Warranty:
2 Year Limited
Amps:
0.017/0.007A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
Ni-Cad
CA Prop-65:
Lead
Carton Cubic Feet:
0.2349
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
Depth:
2.31
FCC Compliant:
No
Feature 1:
NYC Approved
Feature 2:
Red Lettering
Feature 3:
Single or Dual Face
Feature 4:
Knockout Chevron Directional Arrows
Feature 5:
Damp Location
Feature 6:
Ceiling, Wall or Side Mounting
Feature 7:
20-Gauge Steel Housing
Feature 8:
90 Minute Backup Run Time
Feature 9:
Test Switch and AC Supply Indicator
Finish Family:
White
Has Emergency Battery:
Yes
Includes:
Mounting hardware and accessories
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Long Description:
SATCO|NUVO's NYC Approved LED Exit Sign 67-102 - the perfect solution for your emergency lighting needs. With its configurable knockout chevron directional arrows and NYC approved red lettering, this exit sign clearly and effectively guides occupants t
Material:
Steel
Mounting Procedure:
Universal
Operating Frequency:
50/60Hz
Operating Temprature:
+10C (+50F) to +40C (+104F)
Pack Type:
Box
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's NYC Approved LED Exit Sign - the perfect solution for your emergency lighting needs. With its configurable knockout chevron directional arrows and NYC approved red lettering, this exit sign clearly and effectively guides occupants to safet
Safety Listing:
ULus - Certified
Short Description:
EXIT SIGN - RED - NYC
Sloped Ceiling Compatible:
No
Specification Notes:
20-gauge Steel, 3.6V AA300mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 8 in.; Letter Stroke: 1 in.
Title 20 Compliant:
Yes
Title 24 Compliant:
No
Wattage Selectable:
No
Weight Lb.:
6.61
Standard Category:
Utility
Standard Subcategory:
Exit Signs
Standard Finish:
White
Standard Option:
LED
, Prop 65
:
