Category:
Outdoor
Sub Category:
Flood Light
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
12.9
Each Length:
10
Each Width:
4.92
Height Max:
11.69
Length:
9.65
Lumens:
5400L-11200L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
0.375-0.130/0.500-0.173/0.667-0.231A
ANSI Base:
Integrated
Beam Angle:
150x140
B_U_G_Rating:
B3-U2-G1
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Architectural Flood and Spot Luminaires
Each Cube:
0.3673
Each Quantity:
1
Efficacy:
120.00/138.33/140.00 LPW
FCC Compliant:
Yes
Feature 1:
3000K/4000K/5000K CCT Selectable
Feature 2:
45W/60W/80W Wattage Selectable
Feature 3:
Integrated bypassable Photocell and 6KV Surge Protection
Feature 4:
Tempered Glass
Feature 5:
0-10V Dimmable
Feature 6:
IP66
Feature 7:
50,000 Hours
Feature 8:
NEMA Distribution: 7V X 7H
Feature 9:
Suggested Applications: Commercial/Industrial, General Site Lighting, Landscape, Sign Illumination, Pathway/Walkway
Finish Family:
Bronze
Has Driver:
Yes
HID Equiv:
150W-250W
Impact Rating (IK):
IK08
Incandescent Equivalent:
300W
Indoor Outdoor:
Outdoor
Installation Notes:
Height will change with different mounting options.
IOT Enabled:
No
IP Rating:
IP66
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Tempered Glass
Long Description:

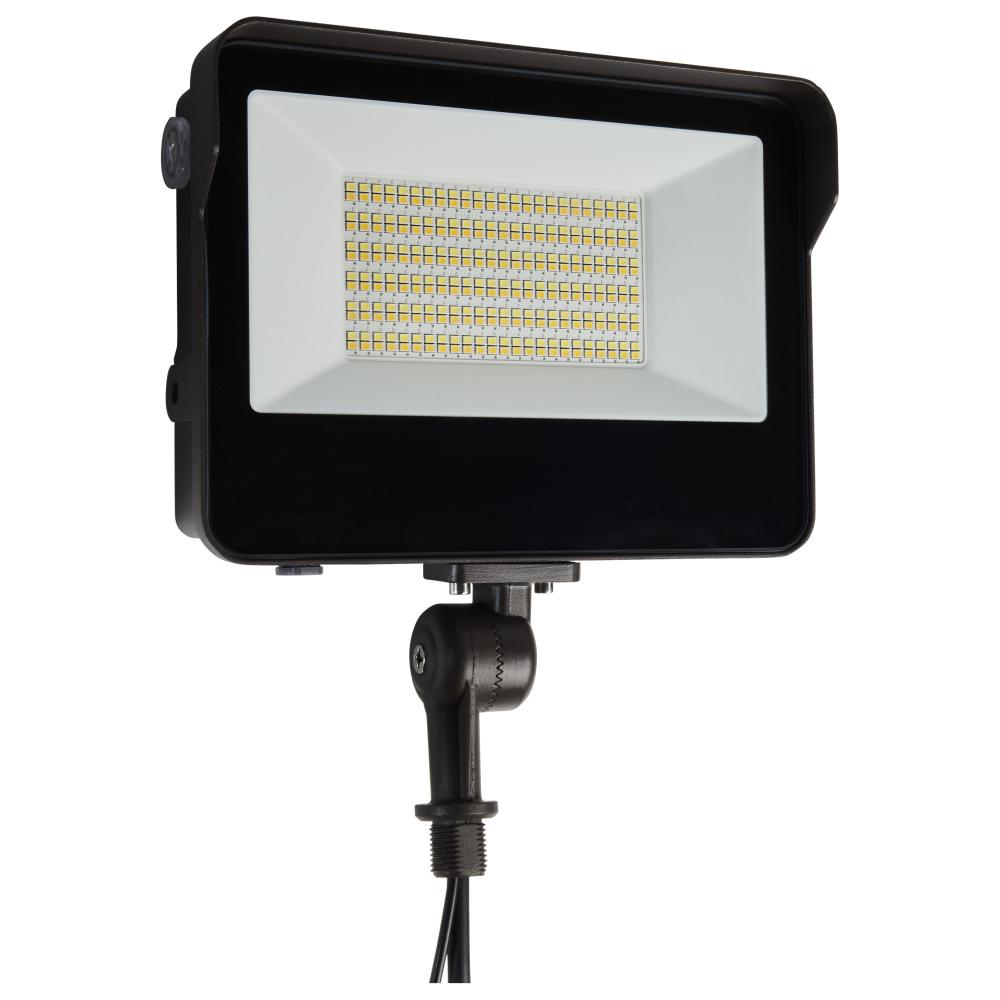

SATCO|NUVO's 65-542 LED Tempered Glass Flood Light is both 3K/4K/5K CCT selectable and 45W/60W/80W wattage selectable, allowing you to visualize and customize any environment. The fixture is IP66 rated to withstand harsh weather conditions, and the hig
Material:
Die-Cast Aluminum
Mounting Procedure:
Ceiling/Wall
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Pack Type:
Box
Photocell:
Has Photocell
Power Factor:
>0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED Tempered Glass Flood Lights are CCT and wattage selectable allowing you to visualize and customize any environment. These fixtures are IP66 rated to withstand harsh weather conditions, and the highly durable tempered glass offers bette
Safety Listing:
cULus
SDS class:
LED_Fixture
Short Description:
LED WATT/CCT SELECTABLE FLOOD
Specification Notes:
NEMA Distribution: 7V x 7H
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
Yes
Weight Lb.:
2.44
Standard Category:
Utility
Standard Subcategory:
Flood Lights
Standard Option:
LED
, Prop 65
Standard Lumens:
3300+
Standard Kelvin:
4001-4500
