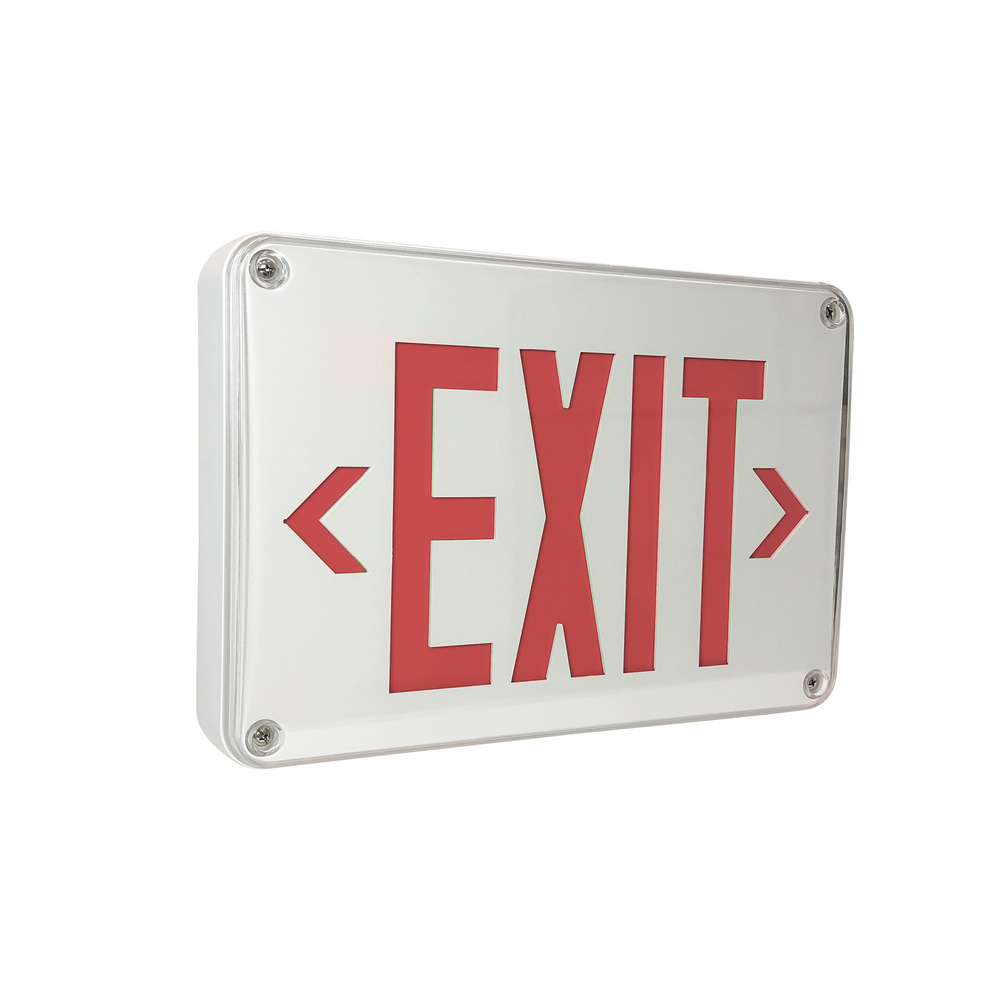

LED exit sign with 6" red letters and white housing; battery backup for illumination during power loss. Luminaire is powered by LED sources for maximum life without maintenance. Ideal for egress lighting where splashing, non-corrosive liquids and dripping may occur. Battery Backup. Cold Weather Option.
Input Voltage: 120/277VAC
Wattage: 2.4W
Finish: White
Face: Impact resistant polycarbonate white face plate with flame retardant and internal gasket for wet location rating. Optional dual face plate included. Fully illuminated 6" Red letters with 3/4" stroke and field selectable directional chevrons included.
Testing: Luminaire includes manual test button for manual verification the transfer circuit and battery operate correctly. Luminaire also performs self tests and diagnostics on battery, charging board, transfer circuit and exit sign. If a failure is detected, an indicator LED will blink red until fault is corrected. A solid green indicator LED indicates no faults and blinked green indicates a test is in progress.
Mounting: Wall, side, or ceilling mount. All mounting hardware included
Cold Weather Option: Exit sign can be used in cold weather locations with heating pad accessory, must specify -CC suffix. When exit sign reaches a low temperature a heating pad will keep the battery within operating temperature, allowing the exit sign to work in temperatures down to -25°C.
Listing: cULus Listed for Wet Locations, UL 924, Title 20, NFPA 70, NFPA 101
Additional Details:
Category:
Exit / Emergency
Product Line:
5010
Est. Shipping Wt.:
7
Length:
2.5
Ship Carton Height:
9.125
Ship Carton Length:
13.5
Ship Carton Width:
3.5
Weight:
4.5
Battery Quantity:
1
Battery Type:
Nickel- Cadmium
Contains Battery:
Y
Country of Origin:
CHN
DLC Listed:
No
Master Box H:
10
Master Box L:
22
Master Box Qty:
6
Master Box W:
15
Master Box Wt.:
32
Product Family:
EXIT
Safety Listing:
UL 924, NFPA 70 / NFPA-101, Title 20
Wattage:
2.4W
Standard Category:
Utility
Standard Subcategory:
Exit Signs
Standard Finish:
White
Product Line:
5010
