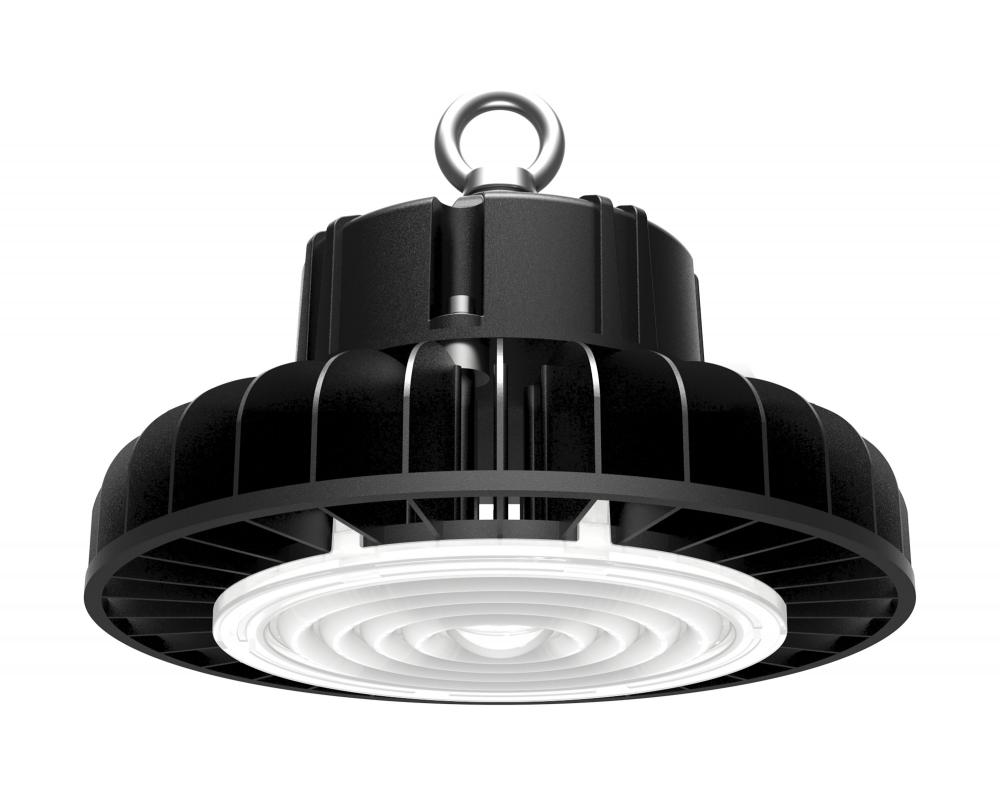

LED High bay; 100W; 5000K; 277/480V; Black Finish
Additional Details:
Category:
Hi-Bay
Sub Category:
UFO
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Natural Light
Diameter:
9.44
Dimmable:
Yes-Dimmable
Each Height:
9.65
Each Length:
11.02
Each Width:
11.02
Lumens:
13000L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
6.56
Amps:
0.361-0.208A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
China
CRI:
70+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
Each Cube:
0.6782
Each Quantity:
1
Efficacy:
130.00 LPW
FCC Compliant:
Yes
Feature 1:
Diameter: 9.44 inches, Height: 7.06 inches
Feature 2:
Black Finish
Feature 3:
Round Shape
Feature 4:
5000K Natural White Light
Feature 5:
Material: Aluminum Alloy
Feature 6:
Lens Material: Polycarbonate
Feature 7:
13,000 lumens
Feature 8:
120 degree beam spread
Feature 9:
5-year limited warranty
Finish Family:
Black
Fixture shape:
Round
HID Equiv:
200W-250W
Impact Rating (IK):
IK08
Incandescent Equivalent:
500W
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Transparent
Lens Material:
Polycarbonate (PC)
Long Description:
Satco's 65-522 100-watt UFO high bay is a versatile lighting fixture for commercial applications. This rugged, integrated fixture offers a bi-level dimming microwave, a pendant mounting adapter, and an anti-glare shield. This dimmable high bay comes in
Material:
Aluminum Alloy
Mounting Procedure:
Ceiling: Loop/Hook/NPT adapter
Operating Temp:
-30C (-22F) to +50C (+122F)
Pack Type:
Box
Power Factor:
0.92
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Satco's 100-watt UFO high bay is a versatile lighting fixture for commercial applications. This rugged, integrated fixture offers a bi-level dimming microwave, a pendant mounting adapter, and an anti-glare shield. This dimmable high bay comes in a blac
Safety Listing:
cETLus
SDS class:
LED_Lamp
Short Description:
LED UFO HIGHBAY - 100W/5000K
Temperature (CCT):
5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Wattage Selectable:
No
Weight Lb.:
6.17
Wire Gauge:
18
Wire Quantity:
2
Wire Temp Rating:
105C (221F)
Standard Category:
Undercabinet
Standard Subcategory:
LED Undercabinet Lights
Standard Finish:
Black
Standard Option:
LED
