Category:
Outdoor
Sub Category:
Area Light
Style:
Utility
Additional Info:
Powder Coated
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Natural Light
Dimmable:
Yes-Dimmable
Each Height:
5.71
Each Length:
23.23
Each Width:
14.37
Length:
20.71
Lumens:
19736L
Tariff Code:
9405.42.6000
Warranty:
5 Year Limited - Fixtures
Amps:
1.250-0.542A
ANSI Base:
Integrated
BAA Compliant:
No
B_U_G_Rating:
B3-U3-G3
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80
Dark Sky Rated:
No
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
Outdoor Pole/Arm-Mounted Area and Roadway Luminaires
Each Cube:
1.1031
Each Quantity:
1
Efficacy:
131.57 LPW
FCC Compliant:
Yes
Feature 1:
Maintenance free - no bulb to change
Feature 10:
5-Year Warranty
Feature 2:
Die-cast Aluminum Body
Feature 3:
UV Stabilized powder coasted bronze finish
Feature 4:
Slip-fitter mount included
Feature 5:
IP65 Rated
Feature 6:
Multiple mounting options available
Feature 7:
Add-on sensors available
Feature 8:
TYPE IV Lighting Distribution
Feature 9:
4KV Built-In Surge Protection
Finish Family:
Bronze
HID Equiv:
320W
Impact Rating (IK):
IK10
Incandescent Equivalent:
450W
Includes:
Slip-fitter Mount
Indoor Outdoor:
Indoor;Outdoor
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Polycarbonate (PC)
Long Description:

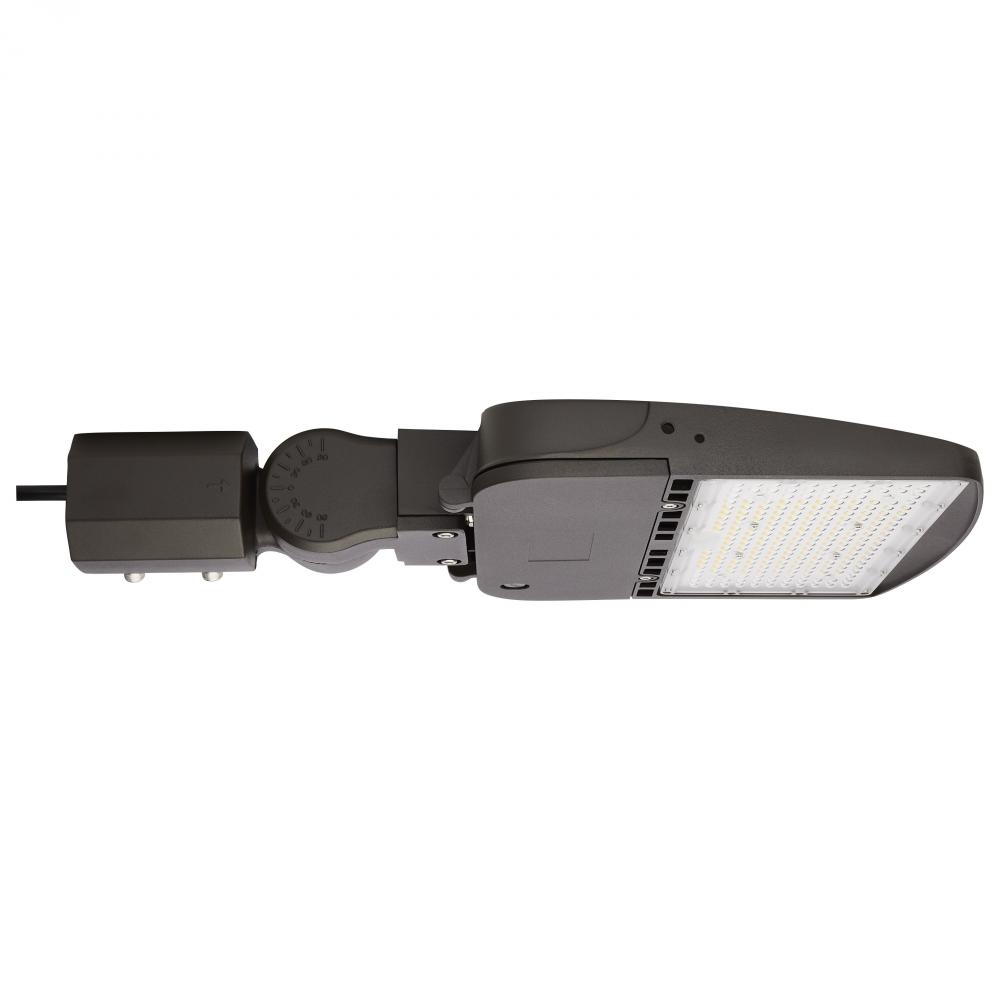

SATCO|NUVO's 65-843-4 150W LED Area Light Type IV provides natural white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built usi
Material:
Die-Cast Aluminum
Mounting Procedure:
Wall/Pipe Arm
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +45C (+113F)
Pack Type:
Box
Photocell:
Optional
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
16
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's LED Area Light Type IV provides natural white light, engineered for the highest performance in multiple applications. The lamp's high lumen count provides superior illumination. SATCO|NUVO's LED Area Lights, built using die cast al
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
150W LED AREA LIGHT TYPE IV
Specification Notes:
Type IV Light Distribution
Temperature (CCT):
5000K
Title 20 Compliant:
No
Wattage Selectable:
No
Weight Lb.:
8.08
Standard Category:
Utility
Standard Subcategory:
Other Utility
Standard Option:
LED
, Prop 65
Standard Lumens:
3300+
Standard Kelvin:
5501-6000
