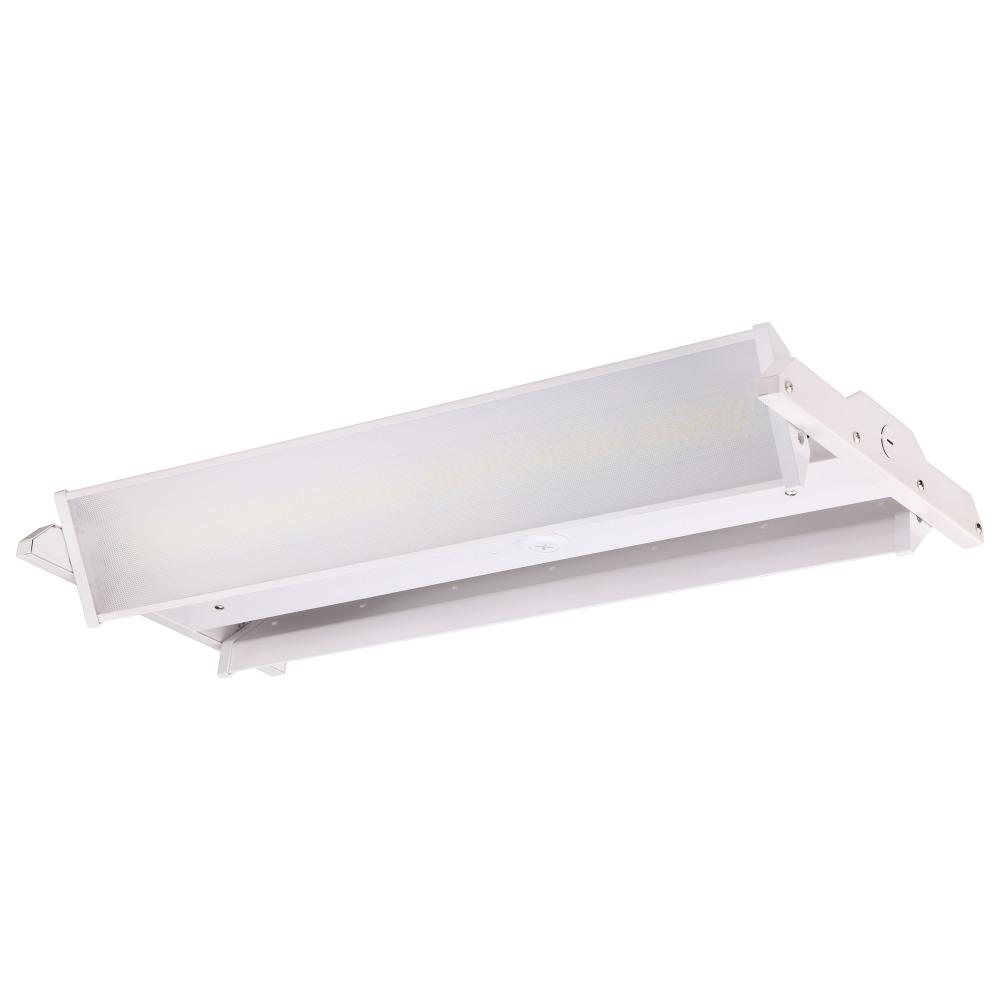

LED Adjustable High bay; 135 Watt; 4000K; Integrated Sensor Port; 120-277 Volt
Additional Details:
Category:
Hi-Bay
Sub Category:
Linear
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Cool White
Dimmable:
Yes-Dimmable
Each Height:
4.72
Each Length:
30.12
Each Width:
15.16
Length:
26
Lumens:
18524L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
5.91
Amps:
1.125-0.487A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
100
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
1.2472
Each Quantity:
1
Efficacy:
137.21 LPW
FCC Compliant:
Yes
Feature 1:
Length: 26.00 inches, Width: 12.00 inches, Height: 1.88 inches
Feature 2:
Damp location rated for indoor use
Feature 3:
White Finish
Feature 4:
Integrated Sensor Port
Feature 5:
4000K Cool White Light
Feature 6:
Rated for 50,000 hours
Feature 7:
Dimmable
Feature 8:
5 year limited warranty
Feature 9:
18524 lumens
Finish Family:
White
Fixture shape:
Rectangle
IC Rated:
Yes
Incandescent Equivalent:
250W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP40
JA8 Compliant:
No
Lens Finish:
Frost
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-643R1 135 watt high bay LED fixture is a rugged lighting solution for commercial applications. Illuminate work areas and retail spaces with this durable, adjustable fixture. This dimmable fixture is sleek, functional, and delivers 50,00
Material:
Aluminum Alloy
Mounting Procedure:
Ceiling
Operating Frequency:
50-60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Pack Type:
Box
Photocell:
Multiple Optional Sensors Available
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 135 watt high bay LED fixture is a rugged lighting solution for commercial applications. Illuminate work areas and retail spaces with this durable, adjustable fixture. This dimmable fixture is sleek, functional, and delivers 50,000 hours o
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
135W LED ADJUSTABLE HIGH BAY
Temperature (CCT):
4000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
9.04
Wire Quantity:
5
Wire Temp Rating:
105C (221F)
Standard Category:
Track Ltg.
Standard Subcategory:
Linear Track
Standard Finish:
White
Standard Option:
LED
, Prop 65
Standard Lumens:
3300+
Standard Kelvin:
4001-4500
:
