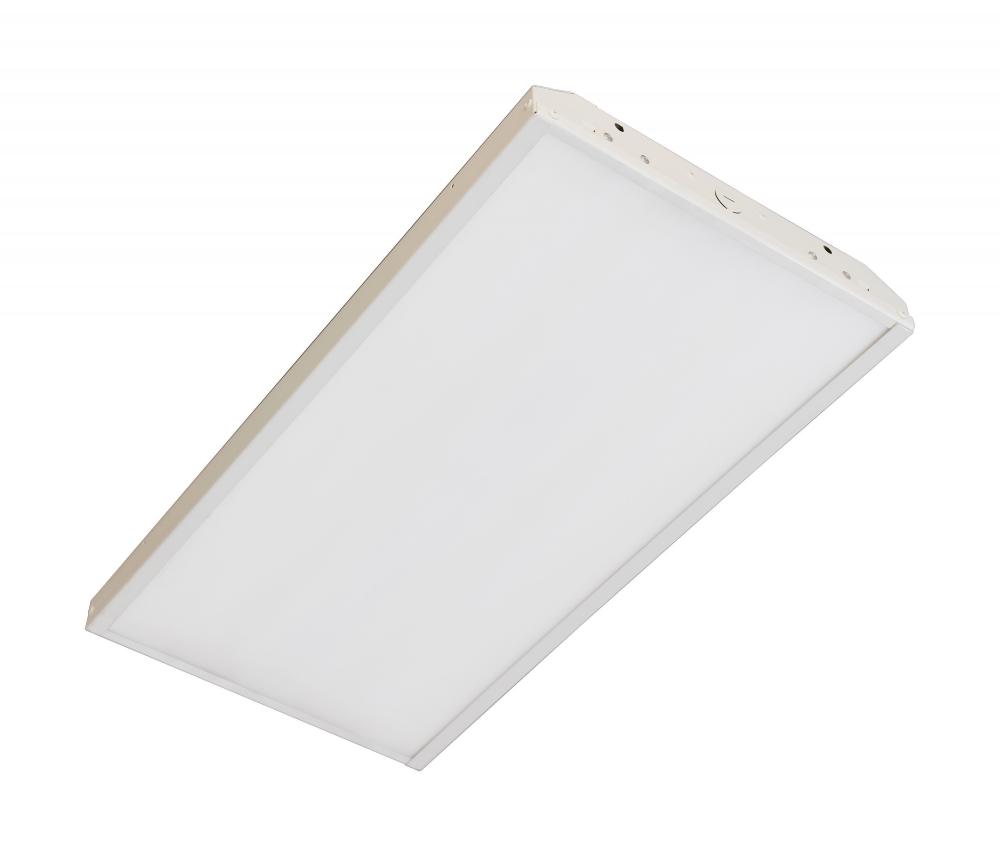

LED 2 ft. Linear Hi-Bay; 110W; 5000K; 100-277V
Additional Details:
Category:
Hi-Bay
Sub Category:
Linear
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Natural Light
Dimmable:
Yes-Dimmable
Each Height:
15.75
Each Length:
25.79
Each Width:
4.33
Length:
23.82
Lumens:
14850L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Amps:
1.100-0.397A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
1.0178
Each Quantity:
1
Efficacy:
135.00 LPW
FCC Compliant:
Yes
Feature 1:
Broad, even light distribution
Feature 2:
1-10V Dimming
Feature 3:
Damp rated for indoor use
Feature 4:
L:23.82 inches; W:12.60 inches; H:2.68 inches
Feature 5:
Rugged construction, White Finish
Finish Family:
White
Incandescent Equivalent:
200W
Includes:
(2) 48 inch Chain; (2) V-Clips; (1) 1.02 inch Mounting Bracket
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
Frost
Lens Material:
Polystyrene (PS)
Long Description:
SATCO|NUVO's 65-504 2ft., 110W, LED linear high-bay fixture is DLC premium and features natural light and a 120 degree beam spread. Damp rated for indoor use, it is suitable for commercial and industrial buildings.
Material:
Aluminum
Mounting Procedure:
Ceiling: Chain
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.95
Quantity In Pack:
1
R9 Value:
5
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 2ft., 110W, LED linear high-bay fixture is DLC premium and features natural light and a 120 degree beam spread. Damp rated for indoor use, it is suitable for commercial and industrial buildings.
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
110W LED 2FT LINEAR HI-BAY
Temperature (CCT):
5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
9.30%
Wattage Selectable:
No
Weight Lb.:
8.93
Wire Gauge:
18
Wire Quantity:
5
Wire Temp Rating:
105C (221F)
Standard Category:
Track Ltg.
Standard Subcategory:
Linear Track
Standard Finish:
White
Standard Style:
Traditional
Standard Option:
LED
, Prop 65
Standard Lumens:
3300+
Standard Kelvin:
5501-6000
:
