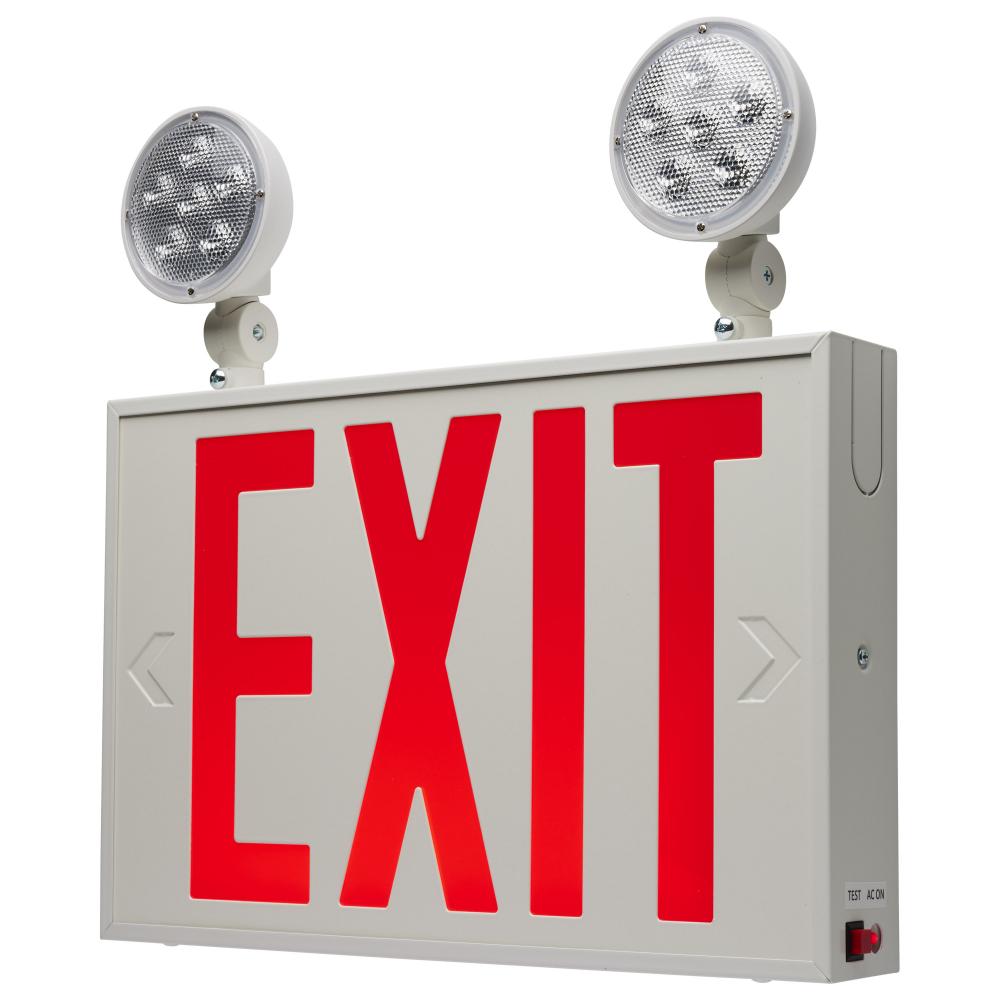

Combination Red Exit Sign/Emergency Light, 90min Ni-Cad backup, 120-277V, Dual Head, Single/Dual Face, Universal Mounting, Steel/NYC
Additional Details:
Category:
Lighting Products
Sub Category:
Exit & Emergency
Style:
Utility
Additional Info:
Input Wattage: 3.0W; Output Wattage: 1.6W; Energy Used in Maintenance Mode: 3.0W
Bulb Shape:
Integrated LED
Bulb Type:
LED
Dimmable:
Non-Dimmable
Harmonized Codes:
9405.61.6000
Lumens:
220L
Ship Carton Height:
2.76
Ship Carton Length:
15.79
Ship Carton Width:
15.16
Warranty:
2 Year Limited
Amps:
0.025/0.108A
ANSI Base:
Integrated
BAA Compliant:
No
Battery Chemistry:
Ni-Cad
CA Prop-65:
Lead
Carton Cubic Feet:
0.3823
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
CRI:
70
Depth:
2.31
Efficacy:
73.33 LPW
FCC Compliant:
No
Feature 1:
Red Lettering
Feature 2:
Single or Dual Face
Feature 3:
Knockout Chevron Directional Arrows
Feature 4:
Two Adjustable Light Heads
Feature 5:
Wall or Side Mounting Options
Feature 6:
20-Gauge Steel Housing
Feature 7:
Damp Location
Feature 8:
90 Minute Backup Run Time
Feature 9:
2 Year Warranty
Finish Family:
White
Has Emergency Battery:
Yes
Incandescent Equivalent:
25W
Includes:
Mounting hardware and accessories
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Long Description:
Keep your building safe and secure with SATCO|NUVO's NYC Approved LED Exit and Emergency light Combo 67-123. This top-of-the-line exit sign includes integrated emergency lights, providing ample lighting during power outages or other emergencies. With c
Material:
Steel
Mounting Procedure:
Wall Side
Operating Frequency:
50/60Hz
Operating Temprature:
+10C (+50F) to +40C (+104F)
Pack Type:
Box
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Keep your building safe and secure with SATCO|NUVO's NYC Approved LED Exit and Emergency light Combo. This top-of-the-line exit sign includes integrated emergency lights, providing ample lighting during power outages or other emergencies. With configur
Safety Listing:
ULus - Certified
Short Description:
EXIT/LIGHT DH - RED - NYC
Sloped Ceiling Compatible:
No
Specification Notes:
20-gauge Steel, 3.6V AA600mAh Ni-Cad Battery, 90 minutes duration, 24 hour charge time, 10C-40C; Letter Height: 8 in.; Letter Stroke: 1 in.; Path of Egress: 6 Ft.
Temperature (CCT):
5700K
Title 20 Compliant:
Yes
Title 24 Compliant:
No
Wattage Selectable:
No
Weight Lb.:
6.28
Standard Category:
Utility
Standard Subcategory:
Exit Signs
Standard Finish:
White
Standard Option:
LED
, Prop 65
:
