Category:
Close-to-Ceiling
Sub Category:
Edge Lit
Style:
Utility
Additional Info:
UGR - 28.89; SDCM - 464; Hi pot - DC-1550V; Edge-lit - Yes
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
5
Dimmable:
Yes-Dimmable
Each Height:
5.2
Each Length:
5.2
Each Width:
1.81
Lumens:
700L-780L
Tariff Code:
9405.11.8020
Warranty:
5 Year Limited - Fixtures
Amps:
0.075A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
100
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Closet Rated:
Yes
Country Of Origin:
Thailand
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
120V only
Each Cube:
0.0283
Each Quantity:
1
Efficacy:
77.78/82.22/86.67 LPW
ES Category:
Downlight Surface Mount
ES Unique ID:
ESID-3553075
FCC Compliant:
Yes
Feature 1:
Integrated LED featuring 9 watts, CCT Selectable from warm to natural light, 90 CRI
Feature 10:
Easy installation with included instructions
Feature 2:
Fixture is dimmable, selectable from 700 to 780 lumens, with a beam spread of 100
Feature 3:
5 inch Diameter x 0.67 inch Height
Feature 4:
White Finish with Acrylic Panel
Feature 5:
Closet rated with zero clearance from storage material
Feature 6:
Ideal for corridors, closets, kitchens, bathrooms, bedrooms, including outdoors as they are wet location rated with closed ceiling applications
Feature 7:
Rated for 50,000 hours
Feature 8:
5 Year Warranty
Feature 9:
Visit Satco.com for optional accessories: 5 inch round extension collar; White - 25-1700, Black - 25-1701, Bronze - 25-1702
Finish Family:
White
Fixture shape:
Round
Flicker Free:
No
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
Installation Notes:
Surface mount; Compatible with 3in. & 4in. J-box and pancake J-box with additional accessory
JA8 Compliant:
Yes
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
From designer aesthetics to state-of-the-art technology, BLINK's fixtures embody this concept entirely. The sleek, low-profile style features die-cast construction, and is CCT selectable, with five preset options from warm to natural light. BLINK Pro 6
Material:
Die-Cast Aluminum
Mounting Procedure:
Ceiling
NEC Compliance:
Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
From designer aesthetics to state-of-the-art technology, BLINK's fixtures embody this concept entirely. The sleek, low-profile style features die-cast construction, and is CCT selectable, with five preset options from warm to natural light. BLINK Pro i
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:

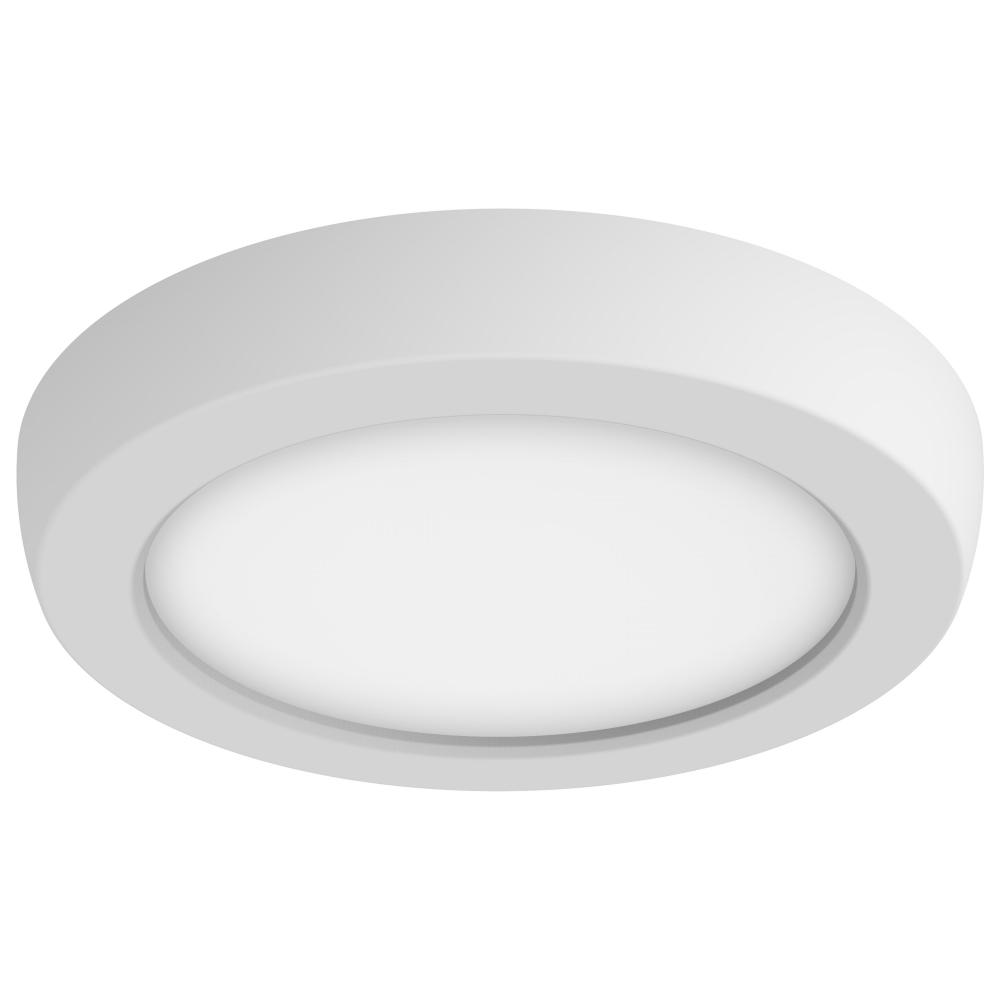

BLINK 9W LED 5" RND WHITE
Sloped Ceiling Compatible:
Yes
Specification Notes:
Overall height of fixture and driver: 1.59"
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Weight Lb.:
0.59
Standard Category:
Flush Mounts
Standard Subcategory:
Other Flush Mounts
Standard Finish:
White
Standard Option:
Energy Star
, LED
, Prop 65
Standard Lumens:
450-800
Standard Kelvin:
4001-4500
