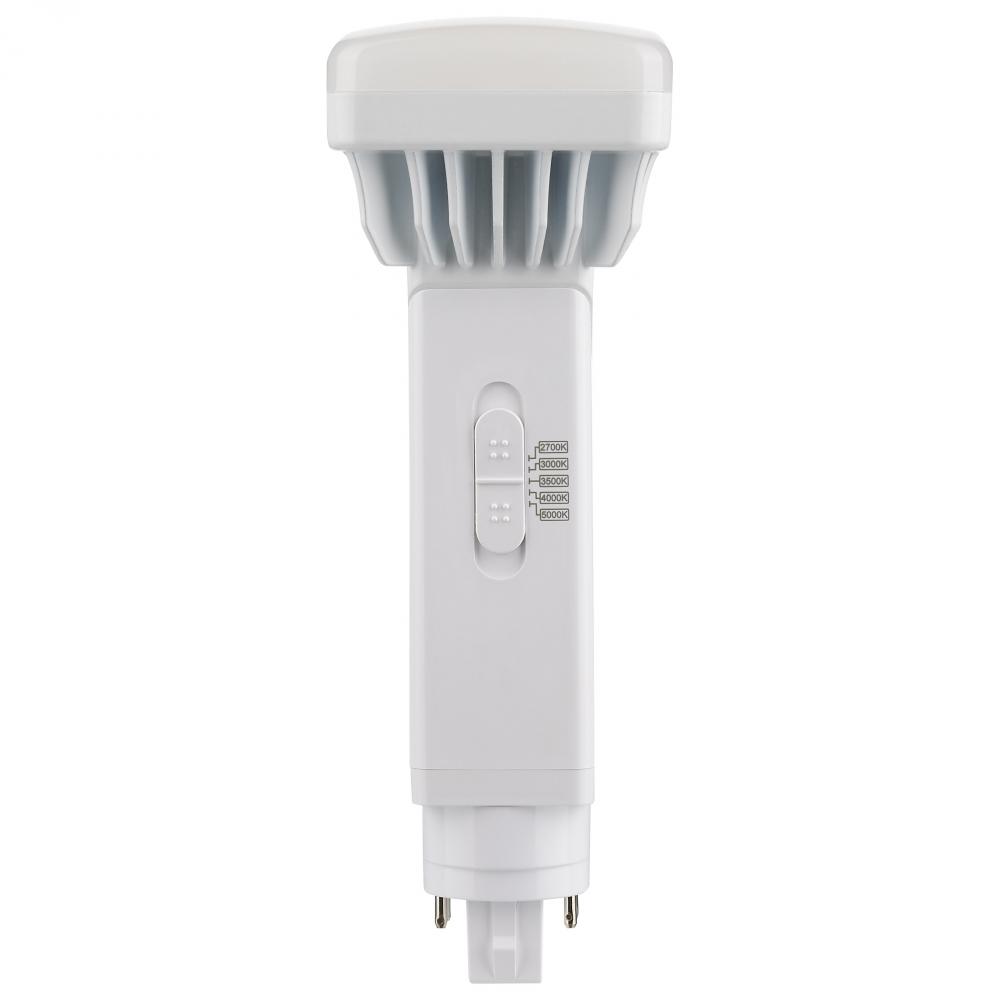

9 Watt PL 4-Pin LED; 1100 Lumens; G24q Base; CCT Selectable; White Finish; 120-277 Volts
Additional Details:
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
2700K/3000K/3500K/4000K/5000K
Bulb Shape:
PL
Diameter:
2.36
EA Length:
2.44
Harmonized Codes:
8539.52.0091
Length:
6.76
Lumens:
1100L
Shap Carton Width:
2.44
Ship Carton Height:
6.89
Ship Weight:
0.53
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.4
BAA Compliant:
No
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread:
120
Bulb ANSI Base:
G24q-4
Bulb Base:
G24q-4 (4-Pin)
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0237
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White to Natural Light
Country Of Origin:
China
CRI:
80+
Dimmable Function:
Only Dimmable with Compatible Dimming Ballasts
DLC Approved:
No
Efficacy:
122.22 LPW
Enclosed Fixture Use:
No
FCC Compliant:
Yes
Feature 1:
90 Degree Rotatable and lockable head and end-cap
Feature 2:
Extendable base for horizontal applications
Feature 3:
26W and 42W triple CFL bulb replacements
Feature 4:
Dual mode Type A/B
Feature 5:
5 CCT Selectable
Feature 6:
Dimmable
Feature 7:
Wet location rated
Feature 8:
Suggested for use in Indoor commercial downlights and high ceiling applications
Flourescent Equivalent:
26W
Housing Color:
White
Incandescent Equivalent:
40W
Indoor Outdoor:
Indoor
Installation Notes:
Suggested wattage equivalency = 26W CFL
IOT Enabled:
No
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A/B
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO NUVO's Dual Position 9W 4-pin PL Lamp is the perfect blend of flexibility, functionality and innovation. Designed with versatility in mind, this lamp features a 90 degree rotatable head that allows light to be directed as needed in both vertical
Material:
Aluminum / Polycarbonate (PC)
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
14
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's Dual Position PL Lamps are the perfect blend of flexibility, functionality and innovation. Designed with versatility in mind, these lamps feature a 90 degree rotatable head that allows light to be directed as needed in both vertical and ho
SDS class:
LED_Lamp
Short Description:
9PL/LED/HV/5CCT/A+B/G24Q
Style:
Transitional
Surge Protection:
Built-in surge protection - 1KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
9W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Lumens:
801-1100
Standard Kelvin:
2501-3000
:
