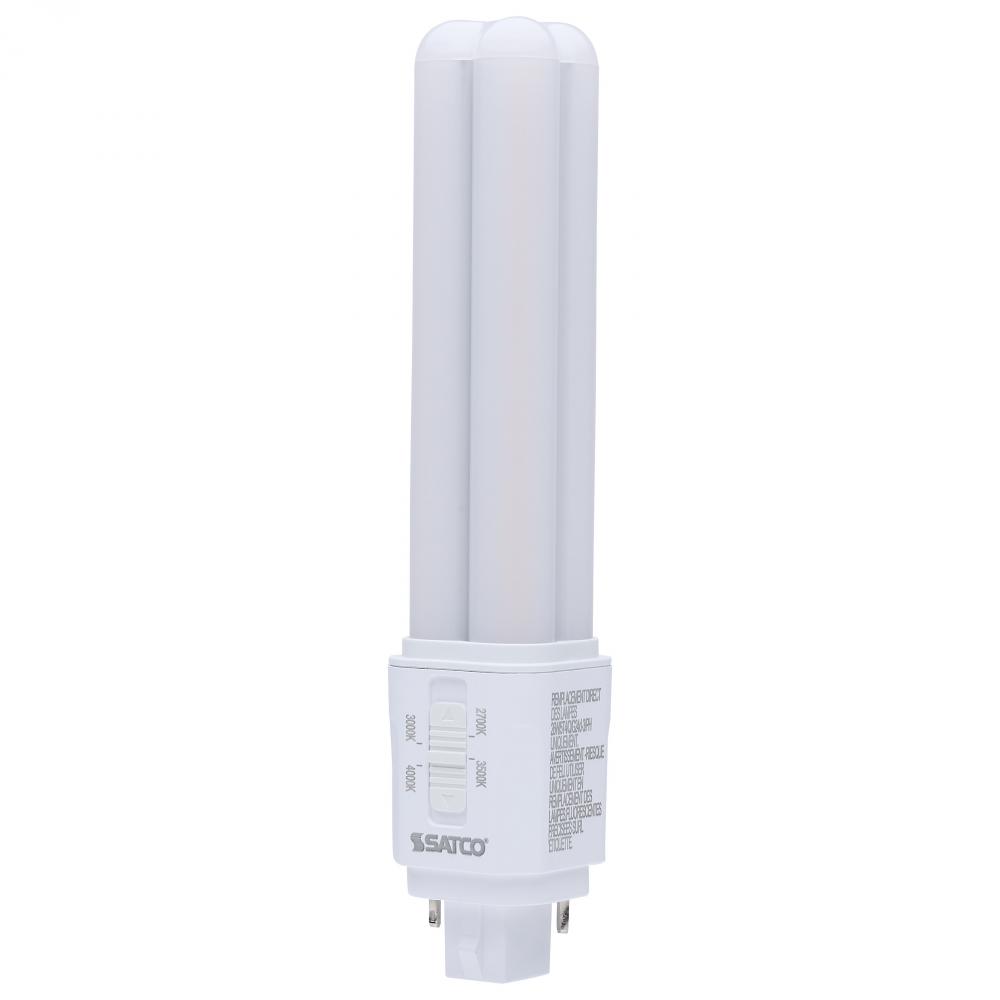

9 Watt LED PL; 27K/3K/35K/4K CCT Selectable; G24d Base; Type B; 120-277 Volt
Additional Details:
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
2700K/3000K/3500K/4000K
Bulb Shape:
PL
Diameter:
1.4
EA Length:
1.46
Harmonized Codes:
8539.52.0091
Length:
6.9
Lumens:
1050L/1100L/1150L/1200L
Shap Carton Width:
1.46
Ship Carton Height:
7.01
Ship Weight:
0.26
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.22
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
G24d
Bulb Base:
G24d (2-Pin)
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0086
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm to Cool White
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
116.67/122.22/127.78/133.33 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
4 CCT Selectable
Feature 2:
Type B Ballast Bypass
Feature 3:
360 Degree Beam Spread
Feature 4:
Suitable for Use in Enclosed Fixtures
Feature 5:
G24d 2-Pin Base
Feature 6:
Damp location rated
Feature 7:
50,000 Hour Functional Life
Feature 8:
5 Year Warranty
Flourescent Equivalent:
18W/26W/32W
Housing Color:
White
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO NUVO's S29855 9-watt PL lamp is a reliable replacement for traditional CFL lamps, offering modern efficiency and performance. Featuring a G24d (2-pin) base and designed for Type B ballast bypass operation, it simplifies retrofitting by eliminatin
Material:
Aluminum / Plastic
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's innovative CFL replacement lamps provide an efficient solution for upgrading older 18W, 26W, or 32W CFL fixtures to the energy-saving advantages of LED technology. These lamps are compatible with three distinct ballast options, providing f
SDS class:
LED_Lamp
Short Description:
9W/LED/CFL/4CCT/BP/2P
Style:
Transitional
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
9W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
:
