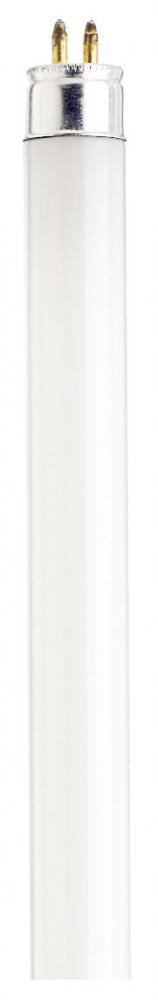

8 Watt; T5; Preheat Fluorescent; 4000K Cool White; 62 CRI; Miniature Bi Pin base
Additional Details:
Category:
Fluorescent
Sub-Category:
T5 Preheat
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
5000
Bulb Kelvin:
4000K
Bulb Shape:
T5
Diameter:
0.63
EA Length:
0.63
Harmonized Codes:
8539.31.0070
Length:
11.91
Lumens:
380L
Shap Carton Width:
0.63
Ship Carton Height:
12.05
Ship Weight:
0.07000000000000001
Warranty:
Avg. Rated Hour Limited
Weight:
0.06
BAA Compliant:
No
Ballast Bypass Direct:
Direct
Ballasting Requirements:
For use with Preheat ballasts
Beam Spread:
360
Bulb ANSI Base:
G5
Bulb Base:
Miniature Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
CA Prop-65:
Lead
Carton Cubic Feet:
0.0028
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Non-Compliant - Mercury Content
CEC Terse:
Non-Compliant Effective 1-1-2025
CEC Web Text:
Non-Compliant Effective 1-1-2025
Color Temprature:
Cool White
Country Of Origin:
China
CRI:
62
DLC Approved:
No
Efficacy:
47.50 LPW
Feature 1:
360-degree beam spread
Feature 2:
Operating temerature: Ballast dependent
Feature 3:
Rated for use in enclosed fixtures
Feature 4:
Dry location rated
Feature 5:
Luminous efficacy: 47.50 lm/w
Feature 6:
Non-Dimmable
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Dry
Long Description:
The SATCO S1904 T5 preheat fluorescent lamp makes use of a magnetic ballast to preheat the tube for a few seconds, before high voltage is applied to strike the mercury arc. Preheating allows the current to flow through each electrode. No additional power i
Nominal Length:
12
Operating Temp:
Ballast Dependent
Pack Type:
Box
Quantity In Pack:
1
RI Terse:
Non-Compliant Effective 1-1-2025
RoHS Compliant:
Yes
Romance Copy:
The SATCO T5 preheat fluorescent lamps make use of a magnetic ballast to preheat the tube for a few seconds, before high voltage is applied to strike the mercury arc. Preheating allows the current to flow through each electrode. No additional power is appl
SDS class:
Linear_Fluorescent_Lamp
Short Description:
F8T5/CW
Technology:
Fluorescent
Title 20 Compliant:
No
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
8W
Standard Category:
Light Bulbs
Standard Subcategory:
Other Bulbs
Standard Finish:
White
Standard Style:
Traditional
Standard Option:
Prop 65
Standard Lumens:
450-800
Standard Kelvin:
3501-4000
Standard Wattage:
8w
:
