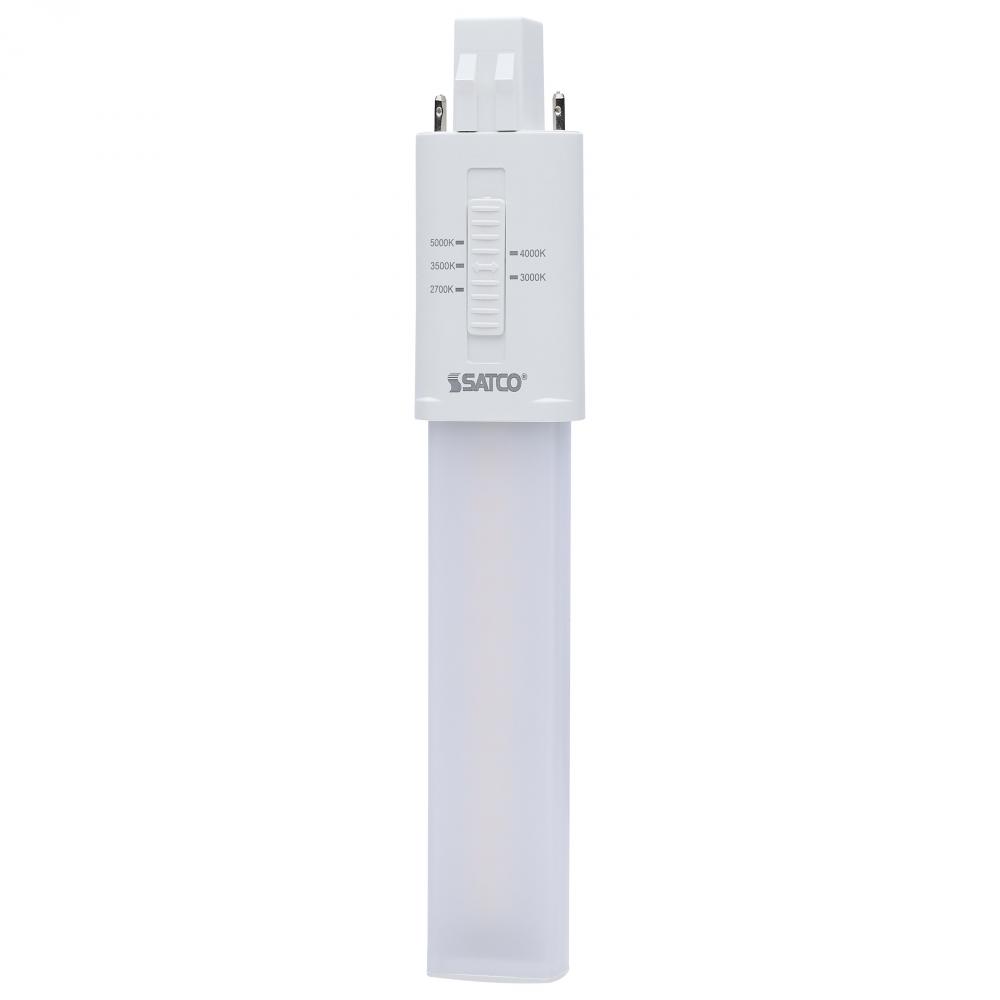

6 Watt LED PL 2-PIN; GX23 Base; 27K/30K/35K/40K/50K CCT Selectable; 120-277 Volt; Type B; Ballast Bypass
Additional Details:
Category:
LED
Sub-Category:
LED CFL Replacements Pin Based
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
2700K/3000K/3500K/4000K/5000K
Bulb Shape:
PL
Diameter:
1.27
EA Length:
1.46
Harmonized Codes:
8539.52.0091
Length:
7.09
Lumens:
600L/625L/650L/650L/625L
Shap Carton Width:
0.98
Ship Carton Height:
7.4
Ship Weight:
0.1
Warranty:
5 Year Limited - 10 hr per day
Weight:
0.1
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
360
Bulb ANSI Base:
GX23
Bulb Base:
GX23
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0061
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White to Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
100.00/104.17/108.33/108.33/104.17 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
5 CCT Selectable
Feature 2:
Type B Ballast Bypass
Feature 3:
360 Degree Beam Spread
Feature 4:
GX23 Lamp Base
Feature 5:
Damp Location Rated
Feature 6:
50,000 Hour Functional Life
Feature 7:
5 Year Warranty
Flourescent Equivalent:
13W
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
Designed for versatility, SATCO|NUVO's S28730 6W Type B LED lamp replaces 13W CFL lamps with a GX23 base. It features a ballast bypass design, enabling direct wiring to the electrical system for improved energy efficiency and simplified installation. W
Material:
Polycarbonate (PC)
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Short Description:
6W/LED/CFL/5CCT/GX23/BP
Style:
Transitional
Surge Protection:
Built-in surge protection - 1.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
No
Watts:
6W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
:
