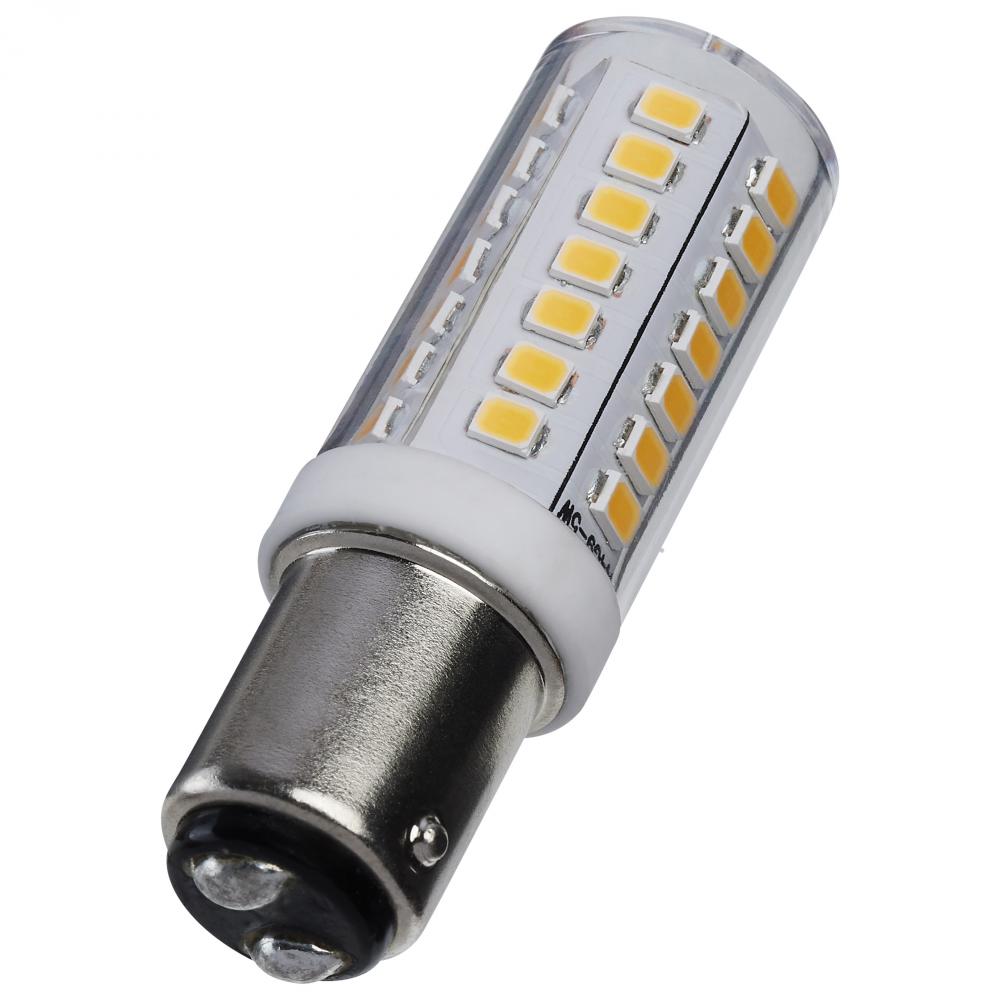

5 Watt Mini LED; Bayonet Double Contact Base; 3000K; Clear Finish; 120 Volt
Additional Details:
Category:
LED
Sub-Category:
Mini and Pin-Based LED
Volts:
120V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
25000
Bulb Kelvin:
3000K
Bulb Shape:
T6
Diameter:
0.75
EA Length:
3.27
Harmonized Codes:
8539.52.0091
Length:
2.24
Lumens:
550L
Shap Carton Width:
0.75
Ship Carton Height:
4.84
Ship Weight:
0.09
Warranty:
3 Year Limited - Mini LED Pin Base
Weight:
0.05
Additional Info:
Housing Material: Ceramic; Lens Material: Polycarbonate (PC)
Beam Spread:
300
Bulb ANSI Base:
BA15d
Bulb Base:
Bayonet Double Contact
Bulb Finish:
Clear
Candle Power:
40
Carton Cubic Feet:
0.0069
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
120V only
Dimming Type:
Forward Phase or Reverse Phase or Phase Selectable or Triac
DLC Approved:
No
Efficacy:
110.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
300 degree Omni-Directional Light
Feature 2:
Clear Lamp Finish
Feature 3:
3000K CCT
Feature 4:
Damp location rated
Feature 5:
T6, Double Contact Base
Feature 6:
Dimmable
Feature 7:
Enclosed fixture rated
Feature 8:
25,000 Life Hours
Housing Color:
White
Incandescent Equivalent:
40W
Indoor Outdoor:
Indoor
JA8 Compliant:
No
Lamp Filament:
LED
Location Rating:
Damp
Long Description:
SATCO|NUVO's S12136 5-watt, BA15d double contact base, Halogen replacement bulb offers bright illumination while consuming minimal power. Designed for socket configurations commonly found in elevators, landscape lighting, and specialty lighting, this b
Material:
Ceramic / Polycarbonate (PC)
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Carded
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's Single and Double Contact LED Halogen Replacement bulbs offer bright illumination while consuming minimal power. Designed for socket configurations commonly found in elevators, landscape lighting, and specialty lighting, they incorporate L
SDS class:
LED_Lamp
Short Description:
5W/LED/DC/CL/830/120V/1CD
Style:
Utility
Surge Protection:
Built-in surge protection - 1.5KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
70%
Wattage Selectable:
No
Watts:
5W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
:
