Category:
Linear Strip
Sub Category:
Strip Fixture
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
5.38
Each Length:
50.08
Each Width:
5.13
Length:
48
Lumens:
3900L-6750L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.250-0.108/0.333-0.144/0.417-0.181A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
B_U_G_Rating:
B2-U4-G2
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Direct Linear Ambient Luminaires; Stairwell and Passageway Luminaires
Each Cube:
0.7999
Each Quantity:
1
Efficacy:
130.00/133.13/135.00 LPW
FCC Compliant:
Yes
Feature 1:
Flicker Free Driver
Feature 2:
Wattage Selectable
Feature 3:
CCT Selectable
Feature 4:
Multiple Mounting Options
Feature 5:
Optional Suspension Kit (65/706)
Feature 6:
Optional Add On Microwave Sensor (86/202)
Feature 7:
Optional Add On PIR Sensor (86/211)
Feature 8:
Optional Add On Emergency Battery Back Up (65/708)
Feature 9:
5 Year Warranty
Finish Family:
White
Flicker Free:
Yes
Has Driver:
Yes
HID Equiv:
100W-150W
Incandescent Equivalent:
150W-175W
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-701 CCT and wattage selectable linear strip light is the ideal choice in utility lighting fixtures. The rugged quality construction and ease of installation make these ideal for commercial applications. With a quick release button for e
Material:
Steel
Mounting Diameter:
4.75
Mounting Procedure:
Ceiling/Wall
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +60C (+140F)
Pack Type:
Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
23
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's CCT and wattage selectable linear strip light is the ideal choice in utility lighting fixtures. The rugged quality construction and ease of installation make these ideal for commercial applications. With a quick release button for easy set
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:

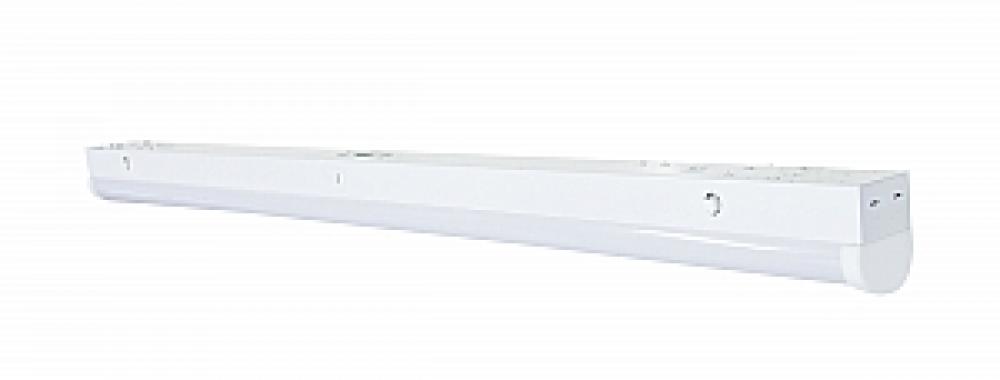

4' LINEAR STRIP WHITE FINISH
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
10.71%
Wattage Selectable:
Yes
Weight Lb.:
3.56
Standard Category:
Undercabinet
Standard Subcategory:
Strip Lights
Standard Finish:
White
Standard Style:
Traditional
Standard Option:
LED
, Prop 65
Standard Lumens:
3300+
Standard Kelvin:
4001-4500
