Category:
LED
Sub-Category:
LED T5
Volts:
Ballast Dependent
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3500K
Bulb Shape:
T5
Diameter:
0.63
EA Length:
47.6
Harmonized Codes:
8539.52.0051
Length:
46
Lumens:
3300L
Shap Carton Width:
0.59
Ship Carton Height:
0.59
Ship Weight:
0.51
Warranty:
5 Year Limited - T5 LED Bulbs
Weight:
0.3
Additional Info:
Light Emitting Area of 325 degrees; System Wattage (Type A) - 28W
BAA Compliant:
No
Ballast Bypass Direct:
Direct
Ballasting Requirements:
Ballast required
Beam Spread:
185
Bulb ANSI Base:
G5
Bulb Base:
Miniature Bi Pin
Bulb Finish:
Gloss
Burning Position:
Universal
Carton Cubic Feet:
0.0096
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Neutral White
Country Of Origin:
China
CRI:
80+
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PLF2500Z49X9
DLC Primary Use:
Replacement Lamps (Plug and Play) (UL Type A)
Efficacy:
132.00 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Over 50 percent Energy Savings Vs. Standard T5 Systems
Feature 2:
Compatible with T5 HO Ballasts
Feature 3:
Integrated Thermal Fuse at Pins
Feature 4:
All Glass Tube Construction
Feature 5:
Damp Location Rated
Feature 6:
Enclosed Fixture Rated
Feature 7:
DLC Listed
Flourescent Equivalent:
54W
Incandescent Equivalent:
100W
Includes:
Integrated thermal fuse at pins
Installation Notes:
Not for use in vapor tight fixtures.
Integrated Features:
Integrated thermal fuse at pins
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A
Lamp End Type:
Double Ended
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Gloss
Location Rating:
Damp
Long Description:

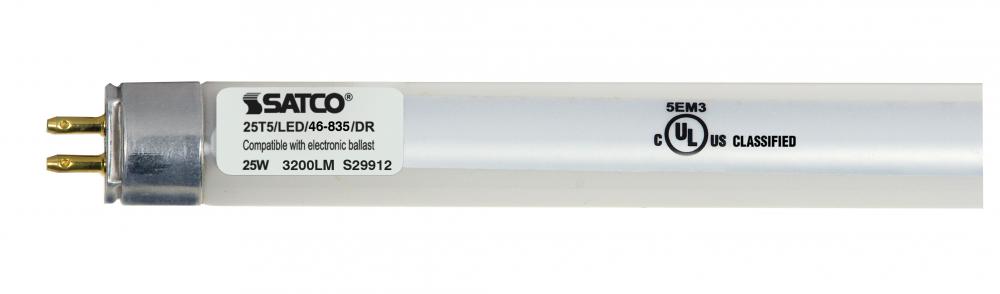

SATCO| NUVO's S29912 4-foot LED Linear T5 Ballast Compatible Lamp has over 50 percent more energy savings when compared to standard T5 systems. The 25 watt, 3500K lamp provides enhanced safety thanks to the integrated thermal fuse located at the pins.
Material:
Aluminum / Glass
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
10
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
5
RoHS Compliant:
Yes
Romance Copy:
SATCO| NUVO's LED Linear T5 Ballast Compatible Lamps come in 2-foot and 4-foot sizes, have over 50 percent energy savings compared to standard T5 systems, and provide enhanced safety thanks to the integrated thermal fuse. Our all-glass tube design not
SDS class:
LED_Lamp
Short Description:
25T5/LED/46-835/DR
Style:
Utility
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
25W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Style:
Traditional
Standard Lumens:
3001-3300
Standard Kelvin:
3501-4000
Standard Wattage:
25w
