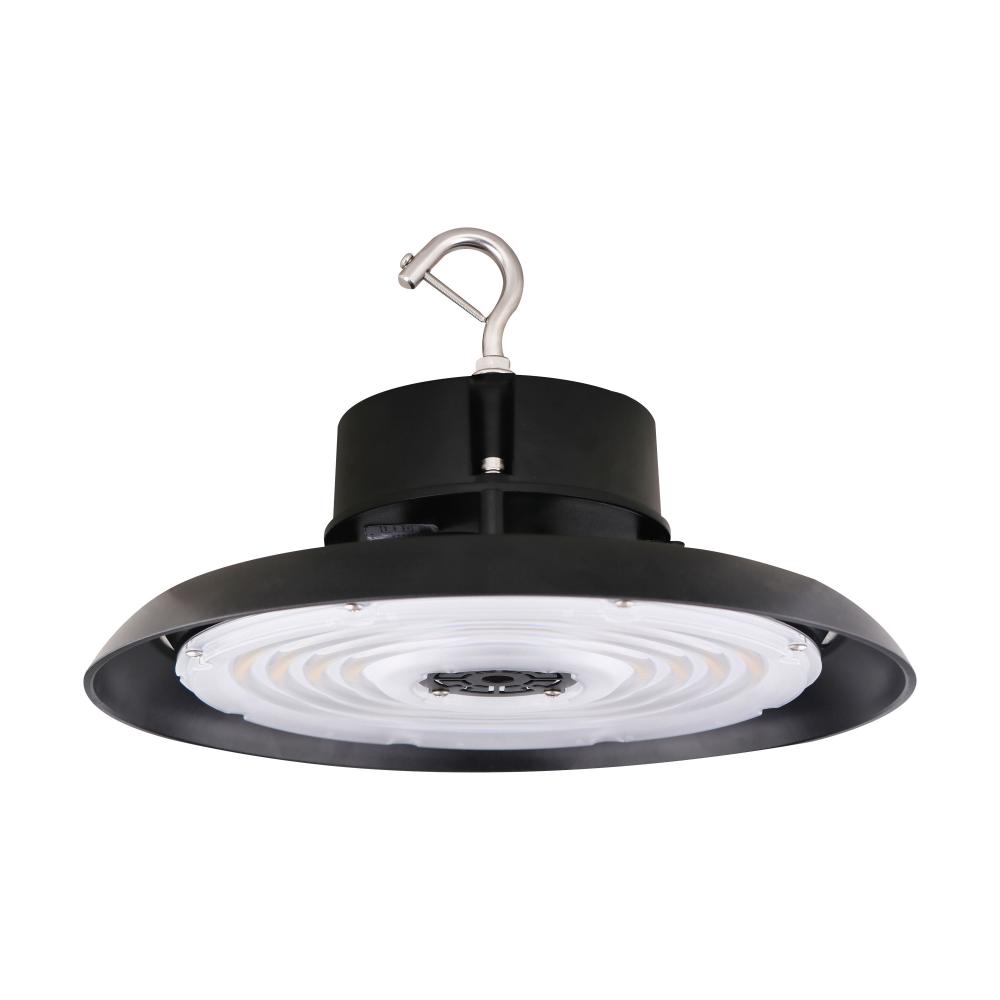

240W UFO LED High Bay; 33840 Lumens; 4000K; 277-480 Volt; 0-10V Dimmable; Black Finish
Additional Details:
Category:
Hi-Bay
Sub Category:
UFO
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Cool White
Diameter:
14.17
Dimmable:
Yes-Dimmable
Each Height:
8.07
Each Length:
16.54
Each Width:
16.54
Lumens:
33840L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
72
Amps:
0.866-0.500A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
90
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
Connection:
Hardwire
Country Of Origin:
Malaysia
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
1.2776
Each Quantity:
1
Efficacy:
141.00 LPW
FCC Compliant:
Yes
Feature 1:
Integrated Sensor Port
Feature 2:
IP65
Feature 3:
4KV Surge Protection
Feature 4:
6 Foot Whip
Feature 5:
90 degree Beam Angle
Feature 6:
50,000 Hours
Feature 7:
5 Year Warranty
Finish Family:
Black
Has Driver:
Yes
HID Equiv:
700W
Housing Color:
Black
Impact Rating (IK):
IK08
Incandescent Equivalent:
2000W
Indoor Outdoor:
Indoor
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Long Description:
Introducing 65-807, Satco's 240-watt, 277-480 volt, 4000K, black UFO LED High Bay. The superior value offered in our new commercial LED High Bay UFO's meets the needs of numerous applications. A few add-ons that are available for purchase for this
Material:
Die-cast Aluminum
Mounting Procedure:
Ceiling
NSF Approved:
Yes
Operating Temp:
-40C (-40F) to +45C (+113F)
Pack Type:
Box
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing our newest generation of UFO high bays. These cULus listed products are offered in 4000K and 5000K in 100W, 150W, 200W and 240W (120-277V) in white and black finishes and 200W and 240W (277V-480V) in black. They feature an integrated sensor por
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
LED UFO HIGHBAY 240W/4000K
Sloped Ceiling Compatible:
No
Temperature (CCT):
4000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
10.11
Standard Category:
Track Ltg.
Standard Subcategory:
Track Heads
Standard Finish:
Black
Standard Style:
Traditional
Standard Option:
LED
, Prop 65
:
