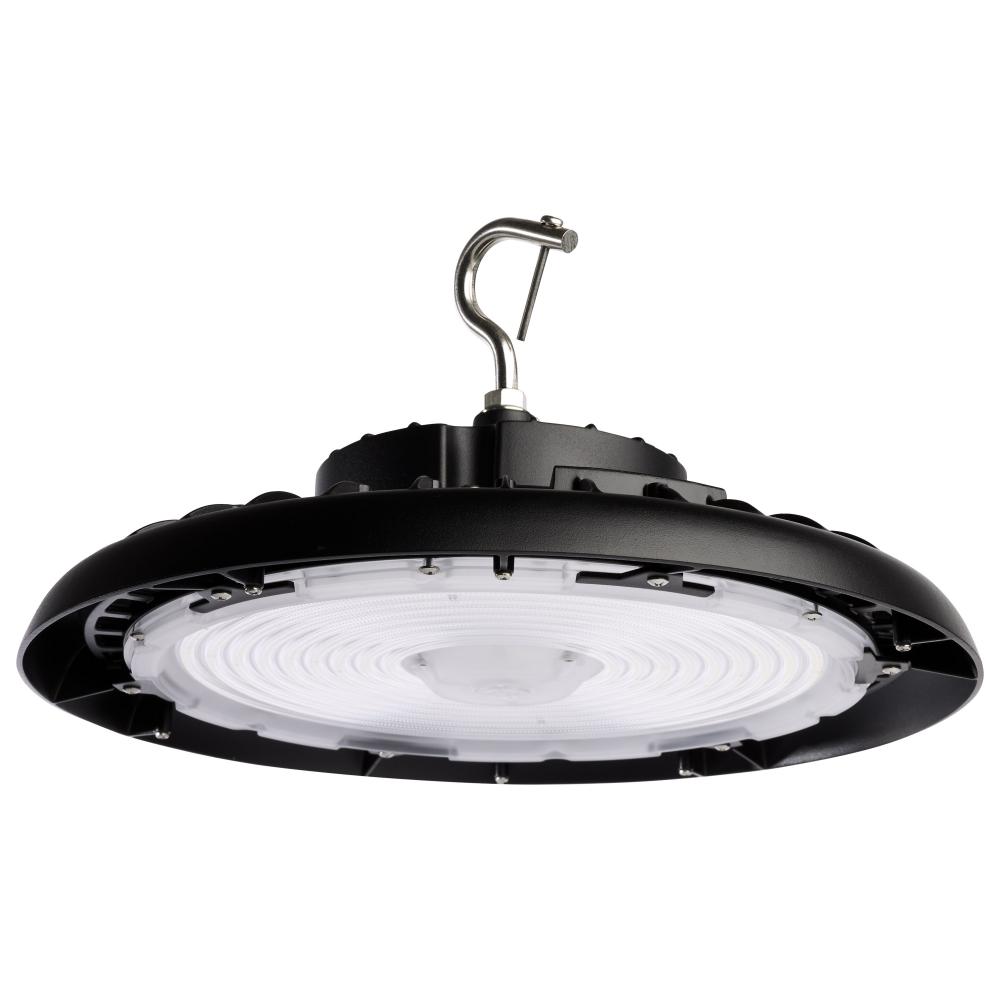

240 Watt UFO LED High Bay; 5000K; 34560 Lumens; 120-277 Volt; Black Finish
Additional Details:
Category:
Hi-Bay
Sub Category:
UFO
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Natural Light
Diameter:
13.39
Dimmable:
Yes-Dimmable
Each Height:
4.92
Each Length:
14.17
Each Width:
14.17
Lumens:
34560L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Wire Length:
72
Amps:
2.00-0.866A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
90
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
High-Bay Luminaires for Commercial and Industrial Buildings
Each Cube:
0.5717
Each Quantity:
1
Efficacy:
144.00 LPW
FCC Compliant:
Yes
Feature 1:
Integrated Sensor Port
Feature 2:
IP65
Feature 3:
6KV Surge Protection
Feature 4:
6 Foot Whip
Feature 5:
90 degree Beam Angle
Feature 6:
50,000 Hours
Feature 7:
5 Year Warranty
Finish Family:
Black
Has Emergency Battery:
No
HID Equiv:
700W
Impact Rating (IK):
IK08
Incandescent Equivalent:
2000W
Includes:
Locking Hanging Hook; 6 Foot Whip
Indoor Outdoor:
Indoor
Installation Notes:
Mounting Height: Up to 35 feet
IP Rating:
IP65
JA8 Compliant:
No
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO|NUVO's 65-788R2 240-watt, 5000K, black UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protecti
Material:
Die-cast Aluminum
Mounting Procedure:
Pendant Hanging Surface
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-40C (-40F) to +50C (+122F)
Pack Type:
Kraft Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
5
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 240-watt, 5000K, black UFO LED High Bay offers superior value and meets the needs of numerous applications. A few add-ons that are available for purchase for this item include a pendant adapter, emergency battery back-up, protective wire g
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
LED UFO HIGHBAY 240W/5000K
Temperature (CCT):
5000K
Title 20 Compliant:
No
Total Harmonic Distortion:
15%
Wattage Selectable:
No
Weight Lb.:
6.42
Standard Category:
Utility
Standard Subcategory:
Other Utility
Standard Option:
LED
, Prop 65
Standard Lumens:
3300+
Standard Kelvin:
5501-6000
:
