Category:
LED
Sub-Category:
LED T5
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
4000K
Bulb Shape:
T5
Diameter:
0.63
EA Length:
45.7
Harmonized Codes:
8539.52.0051
Length:
48
Lumens:
3400L
Shap Carton Width:
0.62
Ship Carton Height:
0.62
Ship Weight:
0.31
Warranty:
5 Year Limited - LED Type C Bulbs
Weight:
0.31
AC/DC:
120-277VAC 43VDC 290mA
Additional Info:
Not for emergency lighting
BAA Compliant:
No
Ballast Bypass Direct:
Replace with external driver
Ballasting Requirements:
Ballast replaced with external driver
Beam Spread:
220
Bulb ANSI Base:
G5
Bulb Base:
Miniature Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0102
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Country Of Origin:
China
CRI:
82
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PLCXVV6NDZC1
DLC Primary Use:
4-lamp External Driver (UL Type C) Lamps
Efficacy:
147.83 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Cool white light
Feature 2:
Damp rated for indoor use
Feature 3:
Enclosed Rated Lamp
Feature 4:
L:48.00 D:0.63
Feature 5:
T8, Frosted Finish
Flourescent Equivalent:
54W
Incandescent Equivalent:
100W
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type C
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Damp
Long Description:

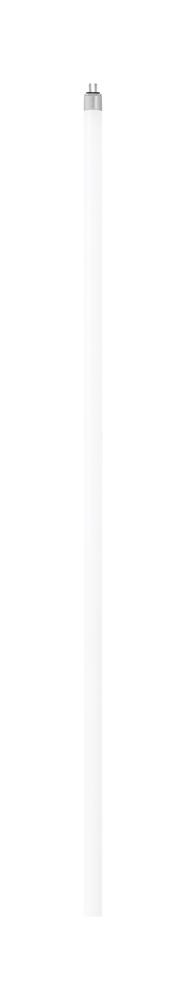

SATCO|NUVO's S11943 23-watt LED, T5 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this
Material:
Glass
Nominal Length:
48
NSF Approved:
ETL Sanitation listed (conforms to NSF)
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
7
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 23-watt LED, T5 bulb is an ideal lighting solution for a variety of applications. This easy to install, low maintenance lamp has a 220-degree beam spread and high lumens count for superior illumination. Dimmable and versatile, this lamp de
SDS class:
LED_Lamp
Short Description:
23T5/LED/48-840/XD
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
23W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Finish:
White
Standard Style:
Traditional
Standard Lumens:
3300+
Standard Kelvin:
3501-4000
