Category:
Linear Strip
Sub Category:
Strip Fixture
Style:
Utility
Additional Info:
Other DLC Listings: PL5HHJWSKN81, Standard, Direct Linear Ambient Luminaires.
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm to Cool White
Dimmable:
Yes-Dimmable
Each Height:
5.31
Each Length:
26.1
Each Width:
5.2
Length:
24
Lumens:
2735L-2830L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.200-0.072A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
B_U_G_Rating:
B1-U3-G1
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium
DLC Primary Use:
Stairwell and Passageway Luminaires
Each Cube:
0.4171
Each Quantity:
1
Efficacy:
136.75/139.13/141.50 LPW
FCC Compliant:
Yes
Feature 1:
Flicker Free Driver
Feature 2:
CCT Selectable
Feature 3:
Multiple Mounting Options
Feature 4:
Optional Suspension Kit (65/706)
Feature 5:
Optional Add On Microwave Sensor (86/202)
Feature 6:
Optional Add On PIR Sensor (86/211)
Feature 7:
5 Year Warranty
Finish Family:
White
Flicker Free:
Yes
Has Driver:
Yes
Has Emergency Battery:
No
HID Equiv:
100W-150W
Incandescent Equivalent:
150W-175W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:

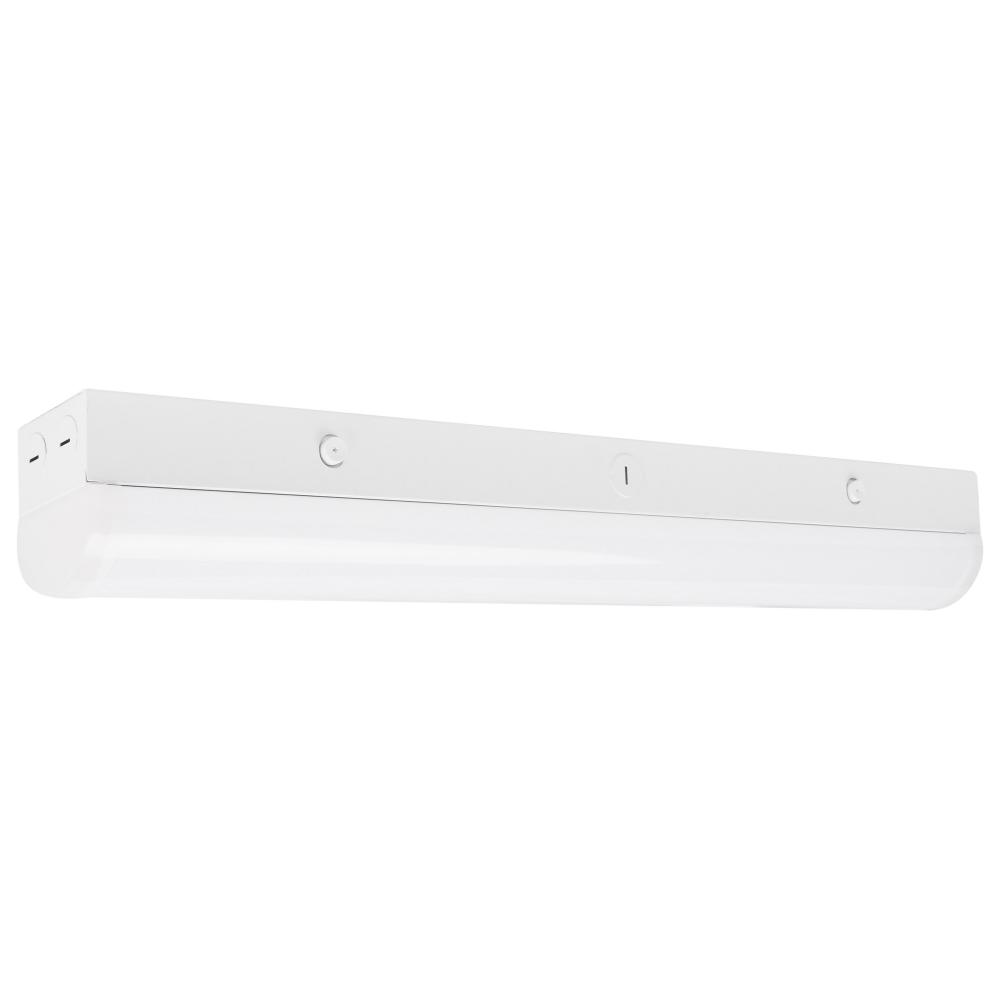

Introducing another addition to our LED strip lights line. SATCO|NUVO's 65-700 is a new cULus listed 20-Watt, 2-foot strip addition is CCT selectable (3500K/4000K/5000K) with a voltage range of 100-277 volts, and is 0-10 volt dimmable. It has a flicker
Material:
Steel
Mounting Diameter:
4.75
Mounting Procedure:
Ceiling/Wall
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +60C (+140F)
Pack Type:
Box
Photocell:
Optional Add-On
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
12
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
Introducing another addition to our LED strip lights line. This new cULus listed 20-Watt, 2-foot strip addition is CCT selectable (3500K/4000K/5000K) with a voltage range of 100-277 volts, and is 0-10 volt dimmable. It has a flicker free driver, is IP20 ra
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
2' LINEAR STRIP WHITE FINISH
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
13.61%
Wattage Selectable:
No
Weight Lb.:
1.78
Standard Category:
Undercabinet
Standard Subcategory:
Strip Lights
Standard Finish:
White
Standard Style:
Traditional
Standard Option:
LED
, Prop 65
Standard Lumens:
2601-3000
Standard Kelvin:
4001-4500
