Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
T8
Diameter:
1
EA Length:
48
Harmonized Codes:
8539.52.0051
Length:
48
Lumens:
2600L
Shap Carton Width:
7.56
Ship Carton Height:
4.92
Ship Weight:
0.85
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.85
Additional Info:
Installation protection - will not light if ballast is not bypassed.
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread:
180
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
CA Prop-65:
Lead
Carton Cubic Feet:
1.0332
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country of Origin:
China
CRI:
80
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PL63HZ9PL0VN
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
140.54 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Natural light
Feature 2:
Damp rated for indoor use
Feature 3:
Enclosed Rated Lamp
Feature 4:
L:48.00 D:1.00
Feature 5:
T8, Frosted Finish
Feature 6:
Flicker Free - Less than 2%
Flicker Free:
Yes
Flourescent Equivalent:
32W
Housing Color:
White
Incandescent Equivalent:
90W
Installation Notes:
Two Installation Options - 1. Double Ended Wiring or 2. Single Ended Wiring
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Long Description:

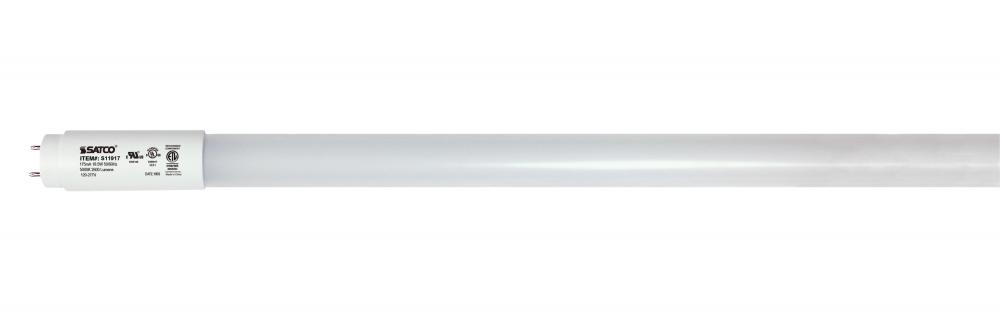

SATCO|NUVO's S11917 18.5-watt T8 LED frosted tubular bulb offers natural light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproof p
Material:
Glass
Nominal Length:
48
NSF Approved:
ETL Sanitation listed (conforms to NSF)
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.92
Quantity In Pack:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's 18.5-watt T8 LED frosted tubular bulb offers natural light and a 180 degree beam spread. The bulb features a medium bi pin base, ballast bypass, and single or double ended wiring. This all glass tube is PET coated for shatterproof protecti
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
18.5T8/LED/48-850/BP 120-277V
Technology:
LED
Title 20 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
18.5W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Finish:
White
Standard Style:
Traditional
Standard Lumens:
1601-2600
Standard Kelvin:
4501-5000
