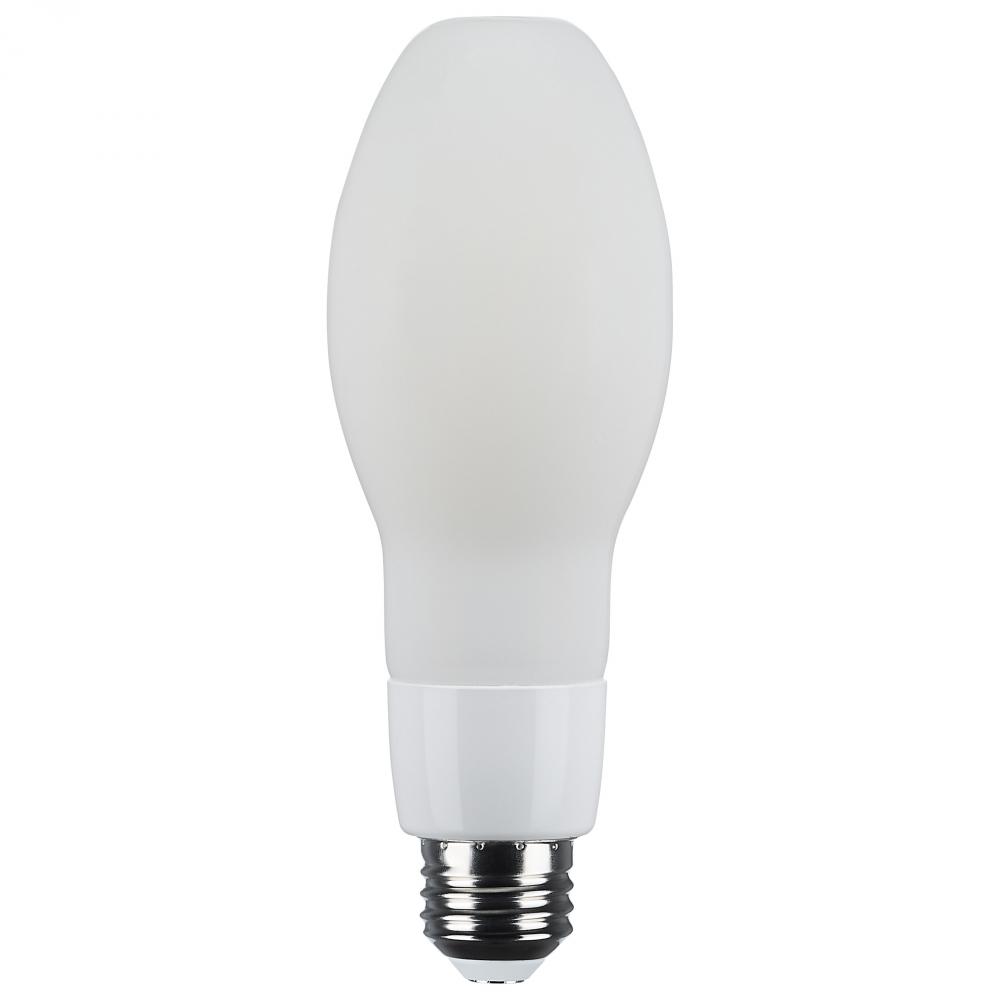

15 Watt LED HID Replacement; ED17; 5000K; Medium Base; White; 120-277 Range Voltage
Additional Details:
Category:
LED
Sub-Category:
HID Replacements
Volts:
120V-277V
Bulb Dimmable:
Non-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
ED17
Diameter:
2.13
EA Length:
2.56
Harmonized Codes:
8539.52.0091
Length:
5.8
Lumens:
2000L
Shap Carton Width:
2.56
Ship Carton Height:
6.89
Ship Weight:
0.25
Warranty:
5 Year Limited - Hi-Pro
Weight:
0.25
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
320
Bulb ANSI Base:
E26
Bulb Base:
Medium
Bulb Finish:
White
Burning Position:
Universal
Carton Cubic Feet:
0.0261
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Non-Compliant - <82 CRI
CEC Terse:
Non-Compliant
CEC Web Text:
Non-Compliant
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
133.33 LPW
Enclosed Fixture Use:
Yes
FCC Compliant:
Yes
Feature 1:
ED17 Shape
Feature 10:
5 Year Warranty
Feature 2:
E26 Base
Feature 3:
White Finish
Feature 4:
15W
Feature 5:
Range Voltage 120V-277V
Feature 6:
Ballast Bypass Type B
Feature 7:
4kV Integrated Surge Protection
Feature 8:
Non-Dimmable
Feature 9:
Wet Location Rated
HID Equivalent:
70W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
IP Rating:
IP65
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp Filament:
LED
Location Rating:
Wet
Material:
Glass
Minimum Compartment Size:
Length: 5.98 in. Width: 5.98 in. Height: 10.16 in.
Operating Frequency:
60Hz
Operating Temp:
-30C (-22F) to +65C (+149F)
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Short Description:
15W/LED/HID/ED17/850/E26/WH
Style:
Utility
Surge Protection:
Built-in surge protection - 4KV
Technology:
LED
Title 20 Compliant:
No
Title 24 Compliant:
No
Wattage Selectable:
No
Watts:
15W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
:
