Category:
LED
Sub-Category:
LED T8
Volts:
347V
Bulb Hours:
50000
Bulb Kelvin:
5000K
Bulb Shape:
T8
Diameter:
1
EA Length:
48
Harmonized Codes:
8539.52.0051
Length:
47.78
Lumens:
1800L
Shap Carton Width:
1.1
Ship Carton Height:
1.1
Ship Weight:
0.45
Warranty:
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight:
0.44
Additional Info:
CANADA ONLY
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
210
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Gloss White
Burning Position:
Universal
Carton Cubic Feet:
0.0336
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Natural Light
Country Of Origin:
China
CRI:
80+
DLC Approved:
No
Efficacy:
128.57 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Double ended wiring
Feature 2:
All glass tube
Feature 3:
Direct wire 347 line voltage - FOR USE IN CANADA
Feature 4:
Type B Ballast Bypass
Feature 5:
Damp location rated, for both indoor and outdoor use
Feature 6:
Long Life - 50,000 hours
Feature 7:
DLC Listed
Feature 8:
5000K CCT, 1800 lumens
Flicker Free:
Yes
Flourescent Equivalent:
32W
Has Emergency Battery:
No
Housing Color:
White
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor;Outdoor
Installation Notes:
Not for use in vapor tight fixtures.
IOT Enabled:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Double Ended
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Long Description:

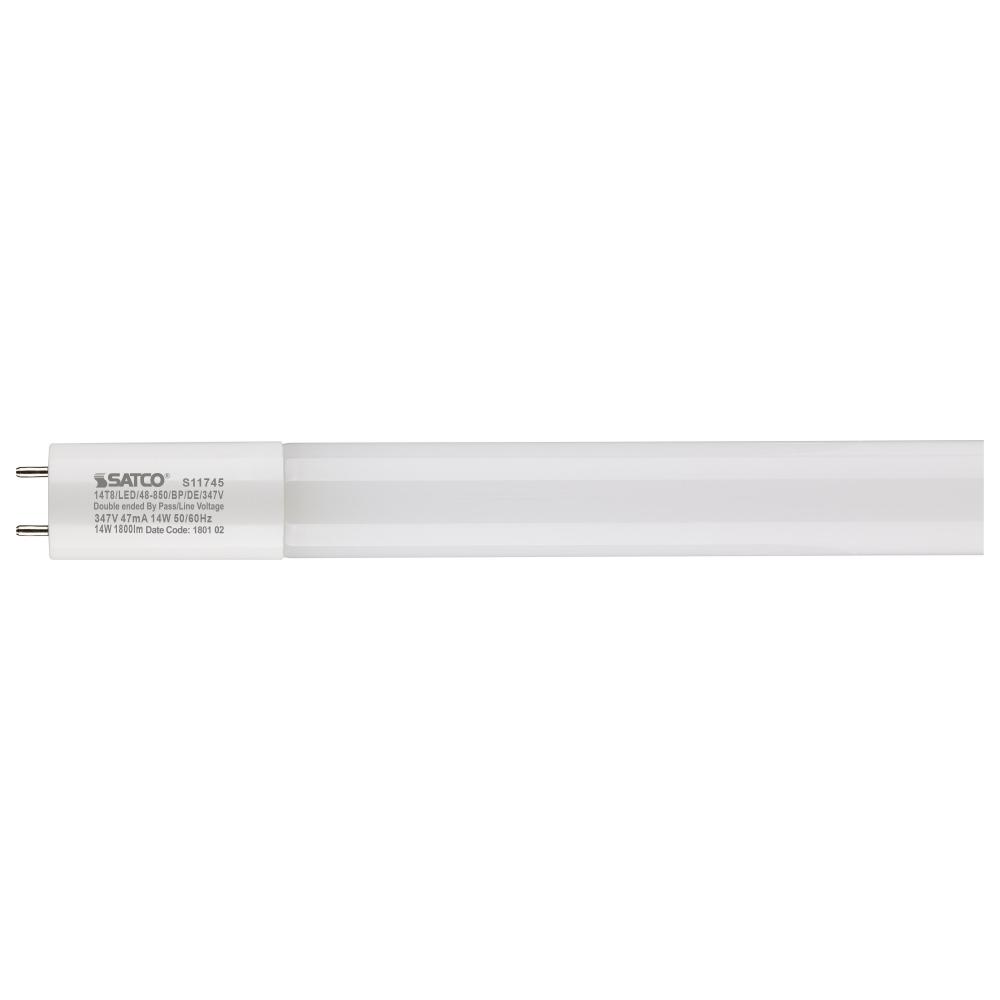

SATCO|NUVO's S11745 14 watt, 4 foot, 5000K LED lamp is part of a new generation of Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps. These lamps are engineered for double-ended wiring and will not light unless
Material:
Plastic
Minimum Compartment Size:
Length: 48.43 in. Width: 13.39 in. Height: 1.77 in.
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
6
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's new generation of Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps, are available in 4 foot lengths in a variety of wattages and lumens. These lamps are engineered for double-ended wiring and will
SDS class:
LED_Lamp
Short Description:
14T8/LED/48-850/BP/DE/347V
Style:
Utility
Technology:
LED
Title 20 Compliant:
Exempt
Total Harmonic Distortion:
20%
Tube Guard Use:
Yes
Wattage Selectable:
No
Watts:
14W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Lumens:
1601-2600
Standard Kelvin:
4501-5000
