Category:
LED
Sub-Category:
LED T8 U Bend
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K
Bulb Shape:
T8
Diameter:
1.1
EA Length:
1.19
Harmonized Codes:
8539.52.0051
Length:
22.59
Lumens:
1900L
Shap Carton Width:
23.13
Ship Carton Height:
7.13
Ship Weight:
0.99
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.91
BAA Compliant:
No
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread:
160
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.1136
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Warm White
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PLT0HYEACRK2
DLC Primary Use:
Dual Mode Internal Driver (UL Type A and Type B)
Efficacy:
146.15 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Up to 60 percent energy savings versus standard T8 systems
Feature 2:
Ballast compatible and ballast bypass in one lamp
Feature 3:
Bypass mode works in single or double ended wiring
Feature 4:
Shatterproof plastic
Feature 5:
Five year warranty
Feature 6:
DLC certified
Flourescent Equivalent:
32W
Housing Color:
White
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures. Direct replacement for 32W/23T8/U6 lamps only
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A/B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Leg Spacing:
6
Lens Finish:
Frost
Lens Material:
Plastic (PS)
Location Rating:
Damp
Long Description:

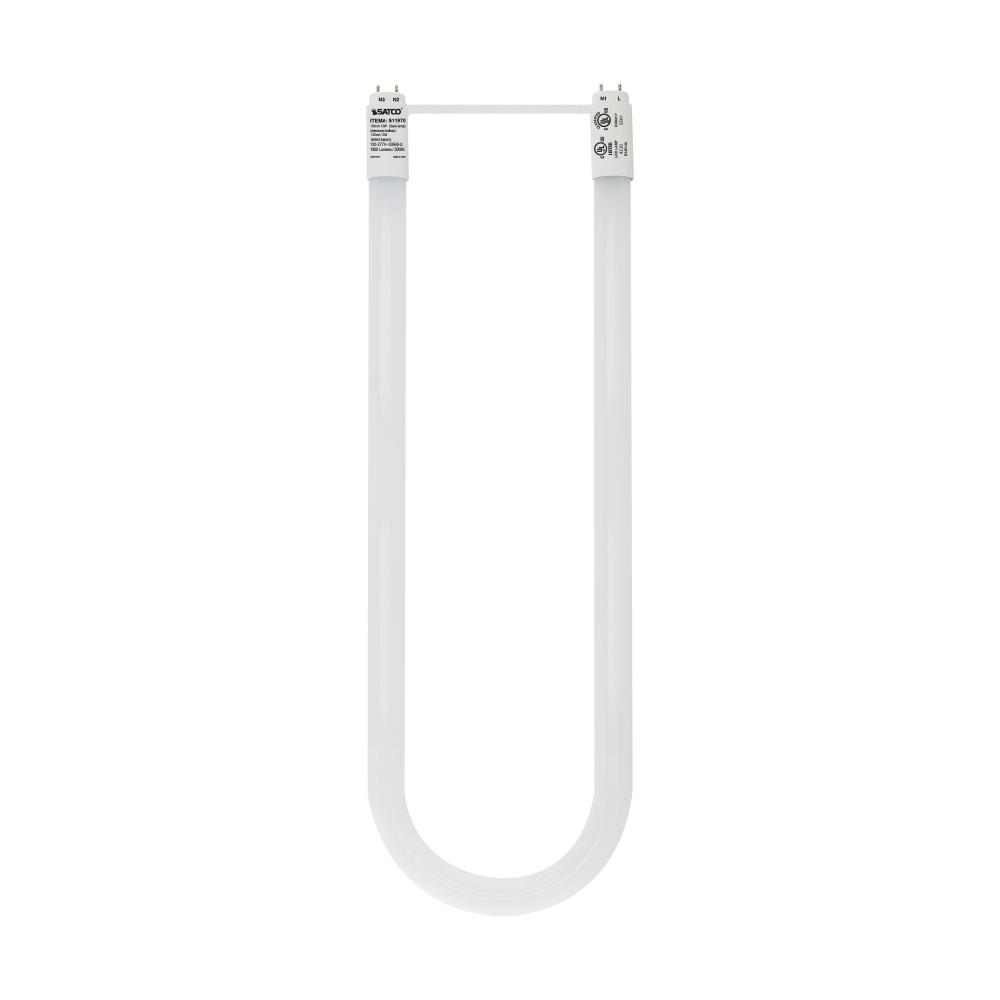

SATCO NUVO's S11970 13-watt, T8 U-bend LED Lamp is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. Dimmable, with a medium
Material:
Plastic
Nominal Length:
22.5
NSF Approved:
ETL Sanitation listed (conforms to NSF)
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Pack Type:
Color Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
1
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's 13-watt, T8 U-bend LED Lamp is an ideal lighting solution for a variety of applications. This energy saving, low maintenance lamp has a 160 degree beam spread and high lumens count for superior illumination. Dimmable, with a medium bi pin
SDS class:
LED_Lamp
Shatter Proof Text:
Yes
Short Description:
13T8U6/LED/22.5-830/DUAL
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.7KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Tube Guard Use:
Yes
Wattage Selectable:
No
Watts:
13W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Finish:
White
Standard Style:
Traditional
Standard Lumens:
1601-2600
Standard Kelvin:
2501-3000
Standard Wattage:
13w
