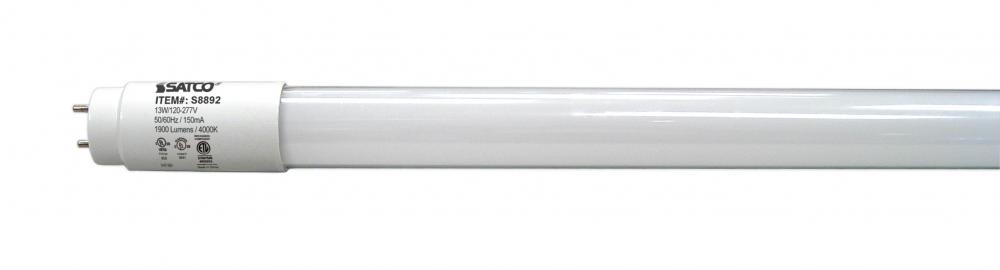

13 Watt T8 LED; Medium bi-pin base; 4000K; 50000 Hours; 1900 Lumens; Type A/B; Ballast Dependant or Ballast Bypass; Single or Double Ended Wiring
Additional Details:
Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
4000K
Bulb Shape:
T8
Diameter:
1
EA Length:
48
Harmonized Codes:
8539.52.0051
Length:
47.78
Lumens:
1950L
Shap Carton Width:
1.1
Ship Carton Height:
1.1
Ship Weight:
0.5
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.53
BAA Compliant:
No
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread:
180
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0336
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Country Of Origin:
China
CRI:
80+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PLIR7BJW4P8T
DLC Primary Use:
Dual Mode Internal Driver (UL Type A and Type B)
Efficacy:
146.15 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Flourescent Equivalent:
28W/32W
Housing Color:
White
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A/B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Location Rating:
Damp
Material:
Glass
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.96
Quantity In Pack:
1
R9 Value:
1
RoHS Compliant:
Yes
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
13T8/LED/48-840/DUAL/BP-DR
Specification Notes:
Ballast Compatible - bare lamp is 12W; Ballast Bypass - 13W.; Protection from arcing- Power must be turned off prior to installing lamps. Sockets must be in good working order, not broken, cracked or electrically compromised. If arcing occurs at the lamp p
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.7KV
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
13W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Finish:
White
Standard Style:
Traditional
Standard Lumens:
1601-2600
Standard Kelvin:
3501-4000
Standard Wattage:
13w
:
