Category:
LED
Sub-Category:
LED T5
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
4000K
Bulb Shape:
T5
Diameter:
0.83
EA Length:
46
Harmonized Codes:
8539.52.0051
Length:
46
Lumens:
1650L
Shap Carton Width:
0.85
Ship Carton Height:
0.85
Ship Weight:
0.4
Warranty:
5 Year Limited - T5 LED Bulbs - Ballast Bypass
Weight:
0.37
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
240
Bulb ANSI Base:
G5
Bulb Base:
Miniature Bi Pin
Bulb Finish:
Frost
Burning Position:
Universal
Carton Cubic Feet:
0.0192
Cartons Per Unit:
1
CCT Selectable:
No
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Cool White
Country Of Origin:
China
CRI:
80+
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
PL3XLAY3AKAW
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
126.92 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
Single or double ended wiring
Feature 2:
All glass tube
Feature 3:
PET-shatterproof coated
Feature 4:
NSF certified
Feature 5:
Damp location rating
Feature 6:
50/60 hertz electric power frequency
Feature 7:
50/60 hertz electric power frequency
Flourescent Equivalent:
28W
Housing Color:
White
Incandescent Equivalent:
50W
Installation Notes:
Not for use in vapor tight fixtures.
IP Rating:
IP20
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Lens:
Yes
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Long Description:

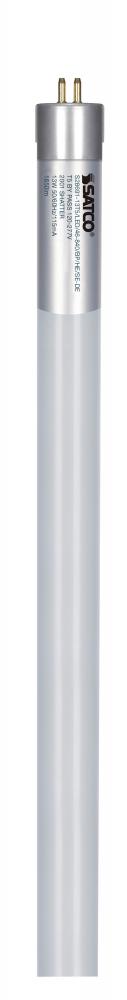

SATCO NUVO's S28691 13-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is
Material:
Glass
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-25C (-13F) to +45C (+113F)
Order In Multiples Of:
25
Pack Type:
Sleeve
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
8
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's 13-watt, T5 LED bulb is an energy efficient lighting solution for residential and commercial applications. Illuminate kitchens, bathrooms, hallways, offices, and retail spaces with this easy to install, frosted white bulb. There is no ball
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
13T5/LED/46-840/BP/HE/SE-DE
Style:
Utility
Surge Protection:
Built-in-surge protection - 0.7KV
Technology:
LED
Title 20 Compliant:
Exempt
Total Harmonic Distortion:
20%
Wattage Selectable:
No
Watts:
13W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
Standard Finish:
White
Standard Style:
Traditional
Standard Lumens:
1601-2600
Standard Kelvin:
3501-4000
Standard Wattage:
13w
