Category:
LED
Sub-Category:
LED T8
Volts:
120V-277V
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T5
Diameter:
0.88
EA Length:
45.28
Harmonized Codes:
8539.52.0051
Length:
45.8
Lumens:
1700L/1775L/1800L/1850L/1750L
Shap Carton Width:
0.87
Ship Carton Height:
0.87
Ship Weight:
0.52
Warranty:
5 Year Limited - T5 LED Bulbs - Ballast Bypass
Weight:
0.37
BAA Compliant:
No
Ballast Bypass Direct:
Ballast Bypass
Ballasting Requirements:
Ballast Bypass
Beam Spread:
160
Bulb ANSI Base:
G5
Bulb Base:
Miniature Bi Pin
Bulb Finish:
White
Burning Position:
Universal
CA Prop-65:
Lead
Carton Cubic Feet:
0.0198
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country of Origin:
China
CRI:
82
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-5P80ZG
DLC Primary Use:
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy:
130.77/136.54/142.31 LPW
Enclosed Fixture Use:
Yes
Enclosure Rating:
Enclosed Rated Lamp
FCC Compliant:
Yes
Feature 1:
4-foot length
Feature 10:
Type B Ballast Bypass
Feature 2:
28-Watt Fluorescent equivalent
Feature 3:
1850 max lumens
Feature 4:
Range voltage: 120V-277V
Feature 5:
Wiring: Single Ended, Double Ended
Feature 6:
DLC ID: S-5P80ZG
Feature 7:
Enclosed fixture rated
Feature 8:
Beam angle of 160 degrees
Feature 9:
Functional life of 50,000 hours
Flourescent Equivalent:
28W
Housing Color:
White
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Long Description:

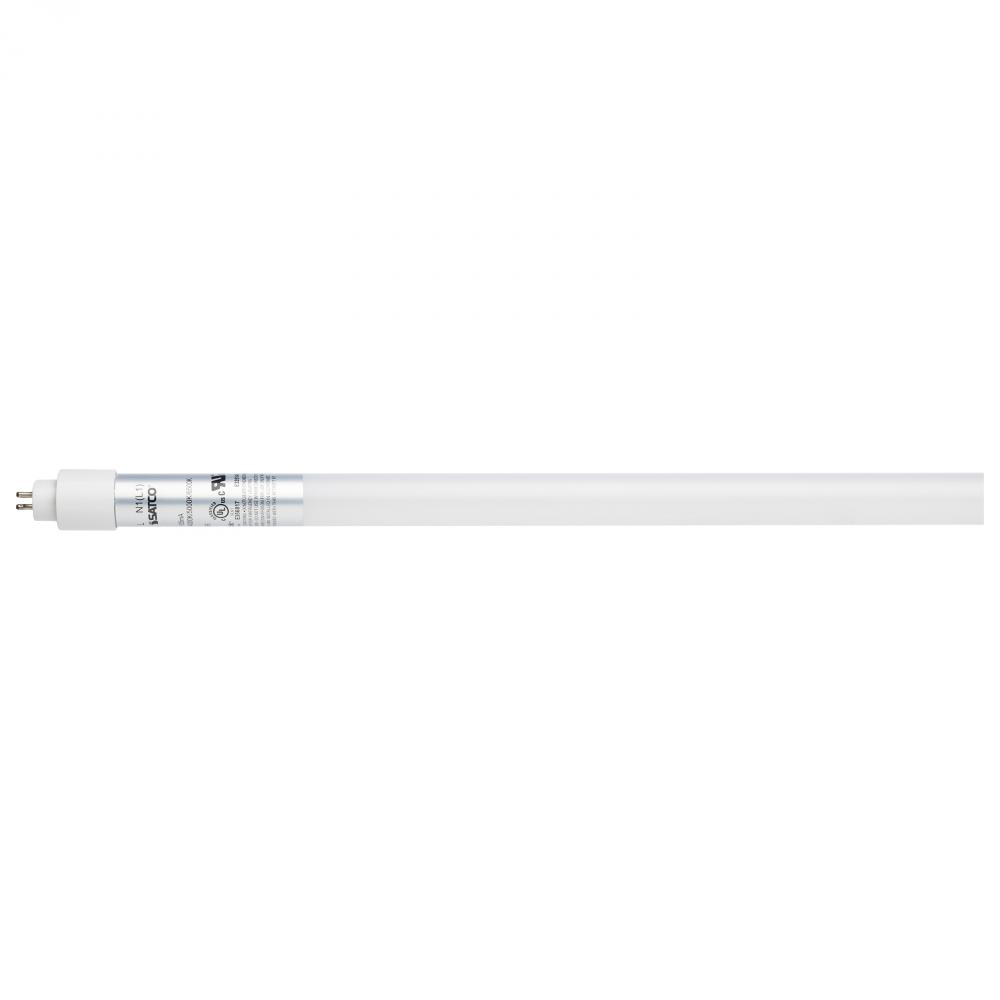

The Satco S11562 LED T5 lamp is a durable and functional lighting solution for a variety of applications. Its sleek, white design and shatterproof PET glass construction make it ideal for use in high-traffic areas and damp locations, such as bathrooms and
Material:
Plastic
Nominal Length:
48
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
8
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO LED T5 lamps are the perfect replacement for fluorescent tubes. They are easy to install, energy efficient, and long-lasting. Available in 2-foot, 3-foot, and 4-foot lengths, these lamps are also five CCT selectable, so you can choose the perfec
SDS class:
LED_Lamp
Shatter Proof Text:
PET Coated
Short Description:
13T5/LED/48-CCT/BP/HE/SE-DE
Technology:
LED
Title 20 Compliant:
No
Total Harmonic Distortion:
<25%
Tube Guard Use:
No
Wattage Selectable:
No
Watts:
13W
Standard Category:
Light Bulbs
Standard Subcategory:
Fluorescent Light Bulbs
Standard Lumens:
1601-2600
Standard Kelvin:
3001-3500
Standard Wattage:
13w
