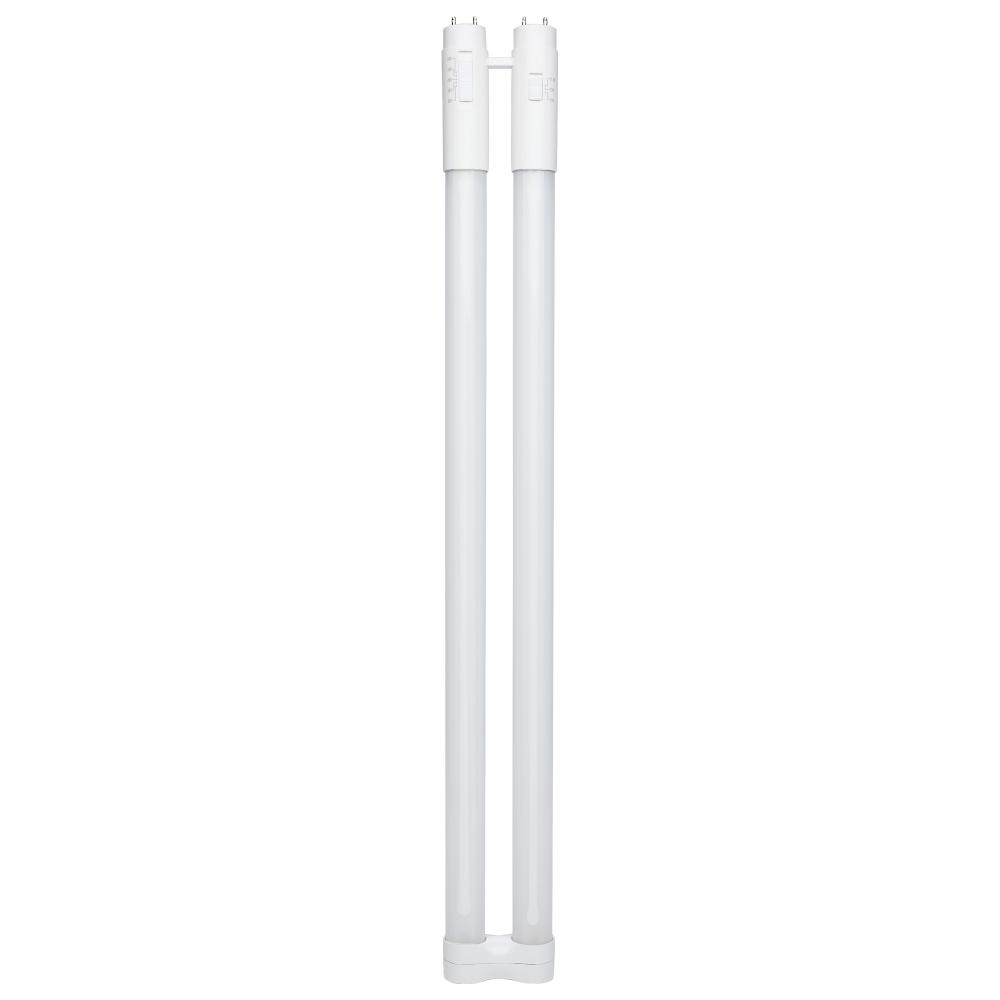

11.5/13/15 Wattage Selectable T8 U-Bend LED; 30K/35K/40K/50K/65K CCT Selectable; 1-Inch; Frost Finish; 120-277 Range Voltage
Additional Details:
Category:
LED
Sub-Category:
LED T8 U Bend
Volts:
120V-277V
Bulb Dimmable:
Yes-Dimmable
Bulb Hours:
50000
Bulb Kelvin:
3000K/3500K/4000K/5000K/6500K
Bulb Shape:
T8
Diameter:
0.96
EA Length:
23.03
Harmonized Codes:
8539.52.0051
Length:
22.43
Lumens:
1800L/2000L/2200L
Shap Carton Width:
1.22
Ship Carton Height:
1.22
Ship Weight:
0.64
Warranty:
5 Year Limited - T8 LED Bulbs
Weight:
0.5
Ballast Bypass Direct:
Dual
Ballasting Requirements:
Ballast required (Type A) or Ballast Bypass (Type B)
Beam Spread:
210
Bulb ANSI Base:
G13
Bulb Base:
Medium Bi Pin
Bulb Finish:
Frost
Carton Cubic Feet:
0.0198
Cartons Per Unit:
1
CCT Selectable:
Yes
CEC:
Exempt - Base Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Color Temprature:
Soft White to Daylight
Country Of Origin:
China
CRI:
80+
Dimmable Function:
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved:
Yes
DLC Classification:
Standard
DLC ID:
S-H5FJF9
DLC Primary Use:
Dual Mode Internal Driver (UL Type A and Type B)
Efficacy:
156.52/153.85/146.67 LPW
Enclosed Fixture Use:
No
FCC Compliant:
Yes
Feature 1:
CCT and Wattage Selectable
Feature 2:
Type A/B Ballast Bypass
Feature 3:
NSF Approved
Feature 4:
Single and Double Ended Wiring
Feature 5:
Full Glass Housing
Feature 6:
1 Inch Leg Spacing
Feature 7:
50,000 Hour Functional Life
Feature 8:
5 Year Warranty
Flourescent Equivalent:
32W
Incandescent Equivalent:
50W
Indoor Outdoor:
Indoor
Installation Notes:
Not for use in vapor tight fixtures.
JA8 Compliant:
No
Lamp Ballast Type A/B/C:
Type A/B
Lamp End Type:
Single Ended;Double Ended
Lamp Filament:
LED
Leg Spacing:
1.63
Lens Finish:
Frost
Lens Material:
Glass
Location Rating:
Damp
Long Description:
SATCO|NUVO's S18414 LED filament U-Bend lamp with 1-inch leg spacing, delivers versatile and efficient lighting solutions for a range of applications. This lamp consumes significantly less energy than its fluorescent counterpart and features a much lon
Material:
Glass
NSF Approved:
Yes
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
12
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO offers LED filament U-Bend lamps with both 1-inch and 6-inch leg spacing, delivering versatile and efficient lighting solutions for a range of applications. These lamps consume significantly less energy than their fluorescent counterparts and fe
SDS class:
LED_Lamp
Short Description:
15T8/U1/LED/5CCT/DUAL
Style:
Utility
Technology:
LED
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Watts:
11.5W/13W/15W
Standard Category:
Light Bulbs
Standard Subcategory:
LED Bulbs
:
