Category:
Surface Mount
Sub Category:
Canopy Fixture
Style:
Utility
Additional Info:
UV stabilized powder coated finish
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Soft White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
11.61
Each Length:
11.89
Each Width:
5.51
Length:
10.06
Lumens:
5625L-9450L
Tariff Code:
9405.11.6020
Warranty:
5 Year Limited - Fixtures
Amps:
0.375-0.162/0.500-0.217/0.583-0.253A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
150
B_U_G_Rating:
B3-U3-G3
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium
DLC Primary Use:
Parking Garage Luminaires
Each Cube:
0.4402
Each Quantity:
1
Efficacy:
125.00/130.00/135.00 LPW
FCC Compliant:
Yes
Feature 1:
CCT and Wattage Selectable
Feature 2:
Ceiling or Pendant Mounting
Feature 3:
Hinged Universal Mounting Bracket
Feature 4:
6KV Surge Protection
Feature 5:
IP65 and IK08 Vandal Resistant
Feature 6:
Wet location rated
Feature 7:
50,000 Hour Functional Life
Feature 8:
10 Inch Square Fixture
Feature 9:
B3-U3-G3 Rating
Finish Family:
Bronze
Fixture shape:
Square
HID Equiv:
94W/125W/158W
Impact Rating (IK):
IK08
Incandescent Equivalent:
300W/400W/500W
Indoor Outdoor:
Outdoor
IP Rating:
IP65
JA8 Compliant:
No
Lens Finish:
Clear
Lens Material:
Polycarbonate (PC)
Long Description:

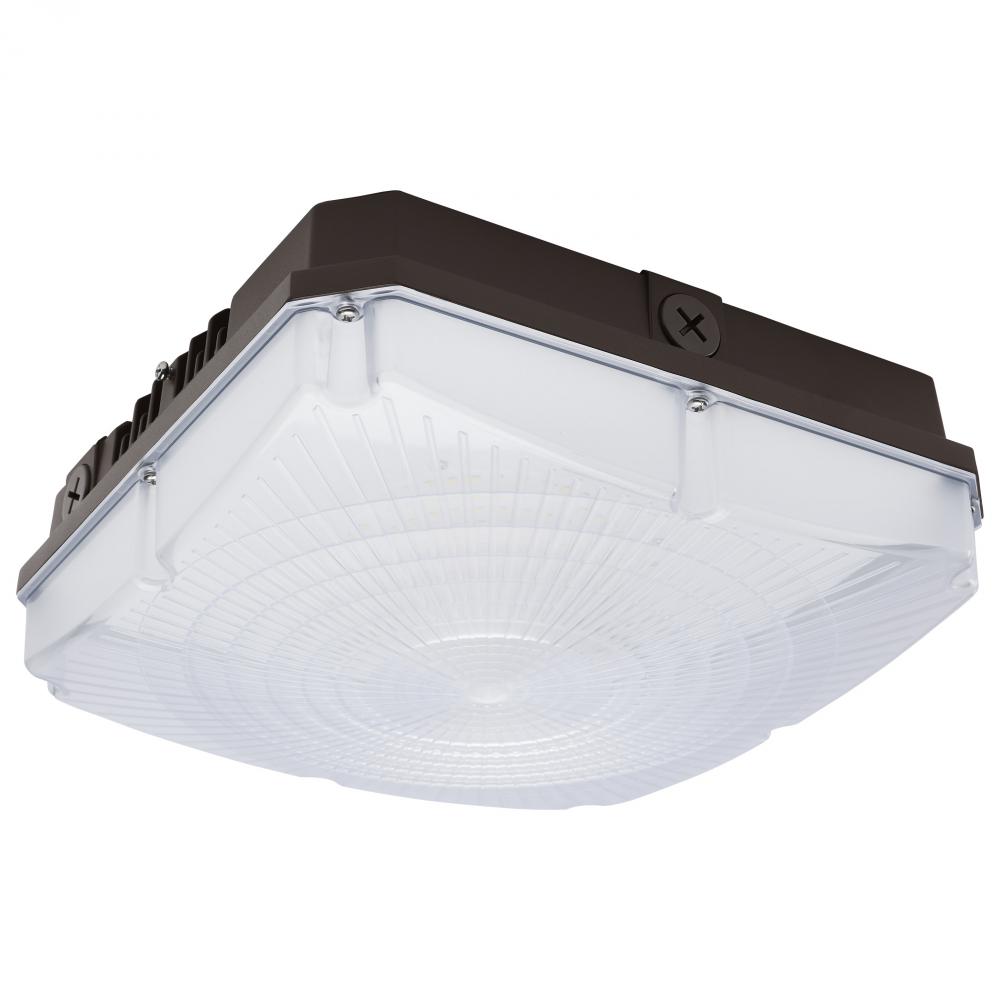

SATCO|NUVO's 65-981 Field Selectable 10 inch square canopy fixture is an ideal choice for multiple applications. This fixture gives users the flexibility to choose from three wattage and three CCT options during installation. With a choice of surface m
Material:
Die-Cast Aluminum
Mounting Procedure:
Ceiling;Pendant Hanging Surface
Operating Frequency:
50/60Hz
Operating Temp:
-30C (-22F) to +45C (+113F)
Pack Type:
Color Box
Photocell:
No
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's Field Selectable square canopy fixtures are an ideal choice for multiple applications. These fixtures give users the flexibility to choose from three wattage and three CCT options during installation. With a choice of surface mounting usin
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Sensor Occupancy or Vacancy:
No
Short Description:
10" LED SELECTABLE CANOPY
Temperature (CCT):
3000K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
9.50%
Wattage Selectable:
Yes
Weight Lb.:
5.03
Standard Category:
Utility
Standard Subcategory:
Other Utility
Standard Option:
LED
